Tracked and Wheeled Mobile Crushers
Unrivaled Solution, High Performance, Advanced Technology!
The product of superior engineering and 21 years of experience, FABO Stationary Crushing Plants are just a click away.
Get a Quote Now!

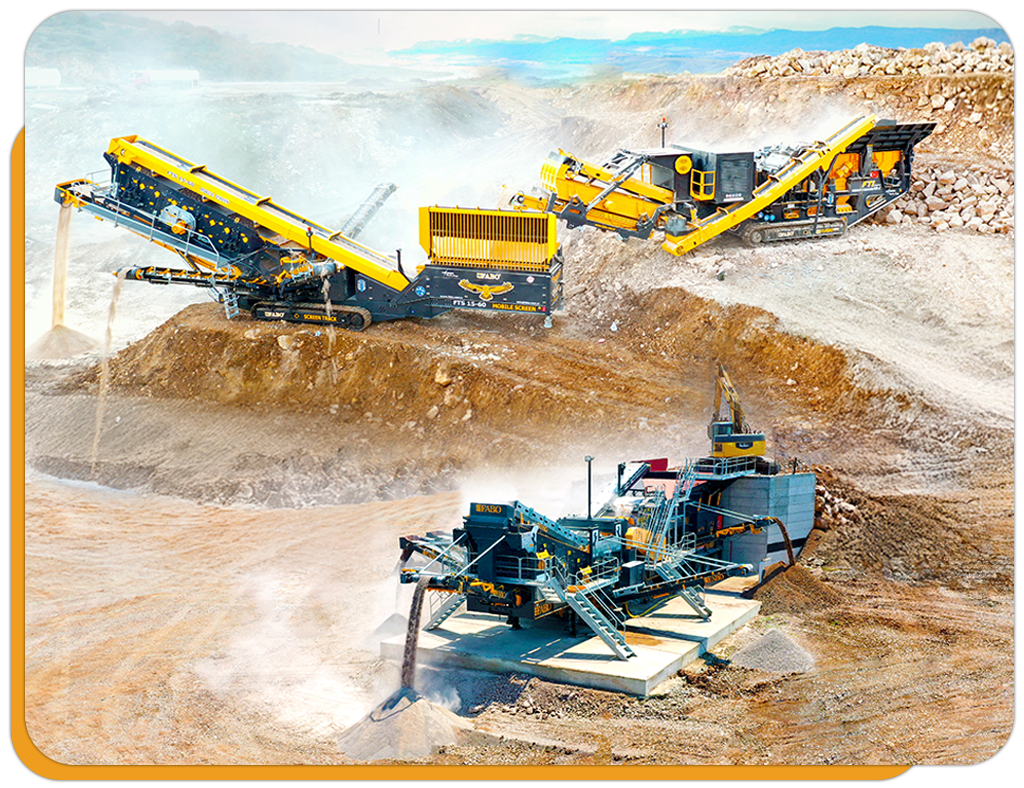

IN ALL DEMANDING CONSTRUCTION SITES
ACHIEVE HIGH PERFORMANCE WITH FABO CRUSHING AND SCREENING PLANTS
FABO MOBILE CRUSHING AND SCREENING PLANTS ARE YOUR SOLUTION PARTNER IN ALL CONSTRUCTION AREAS.
MOBILE CRUSHING AND SCREENING PLANTS FOR EFFECTIVE SOLUTIONS

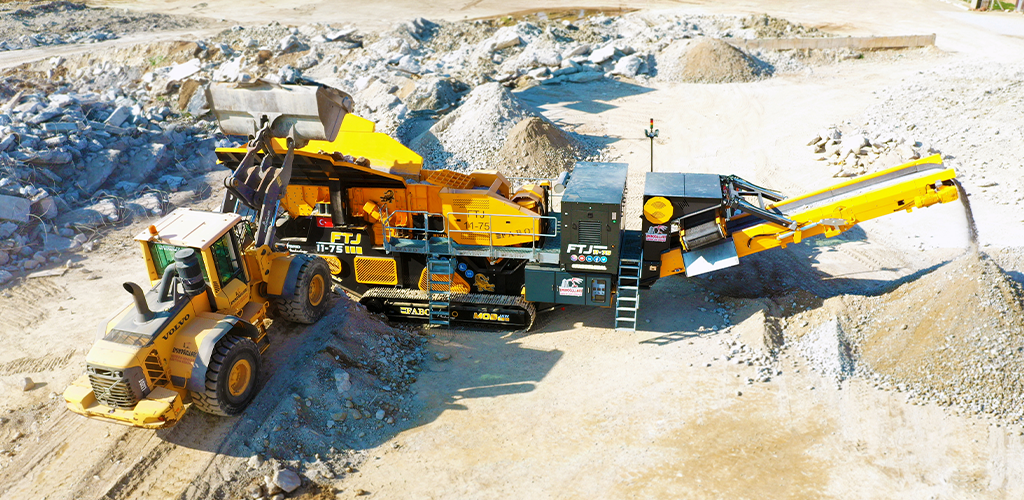

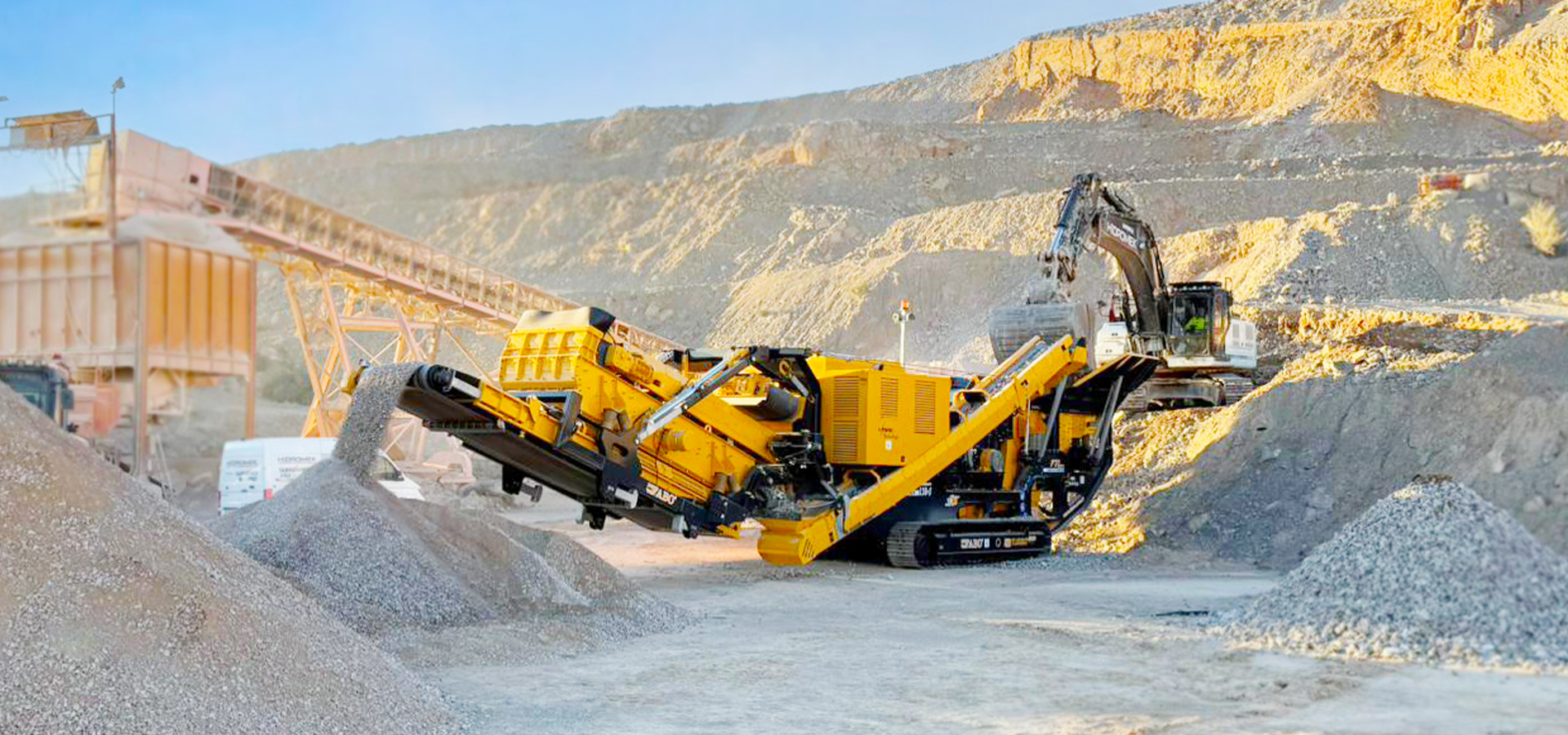

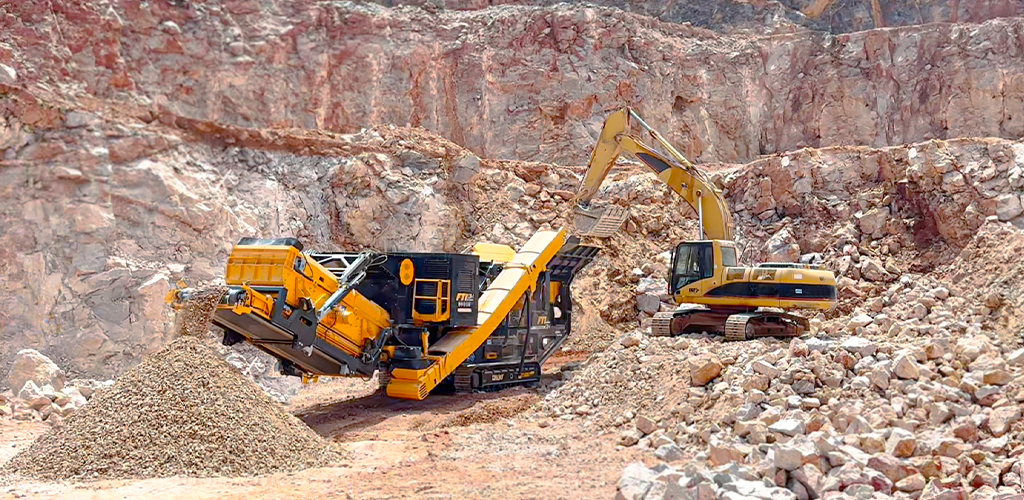

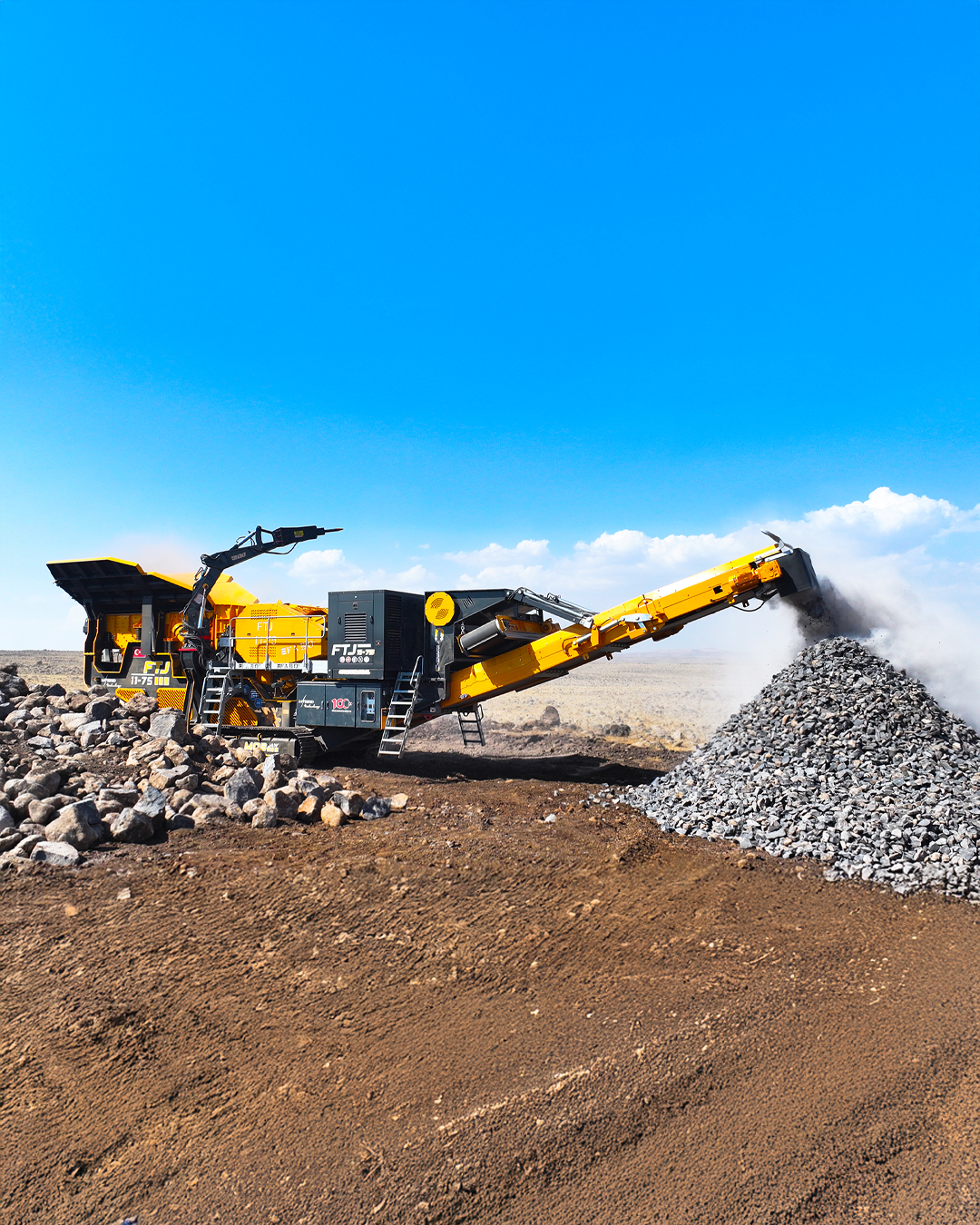

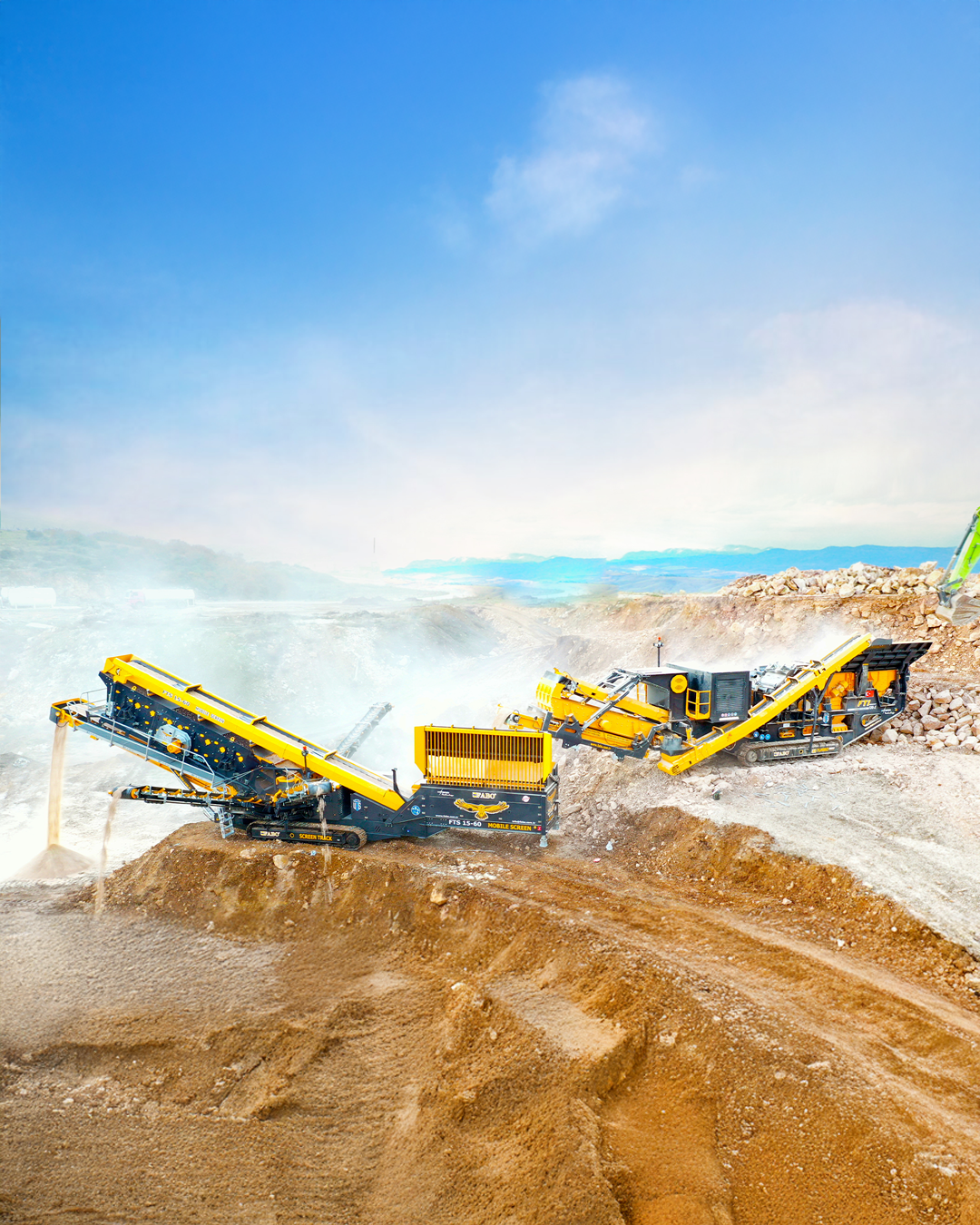

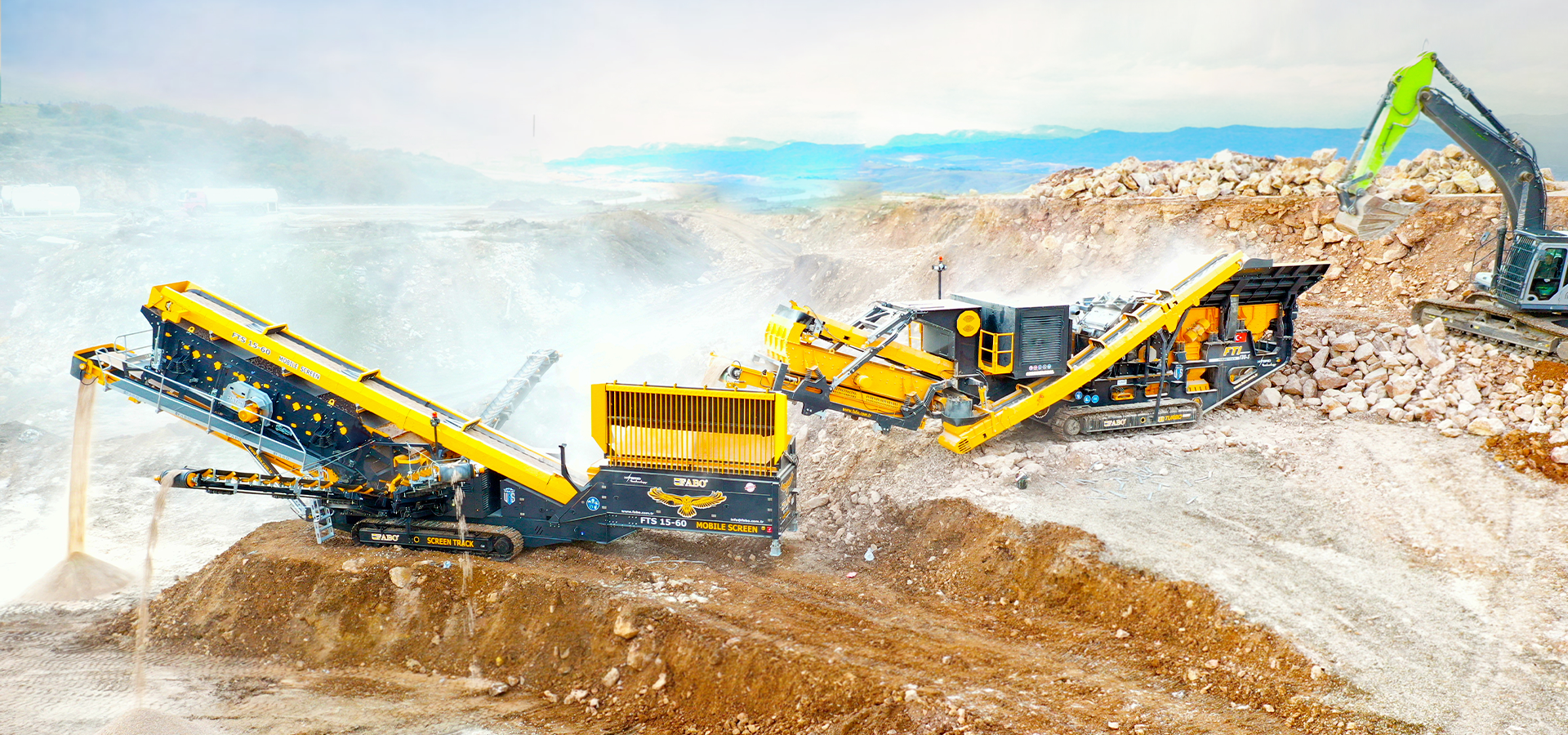

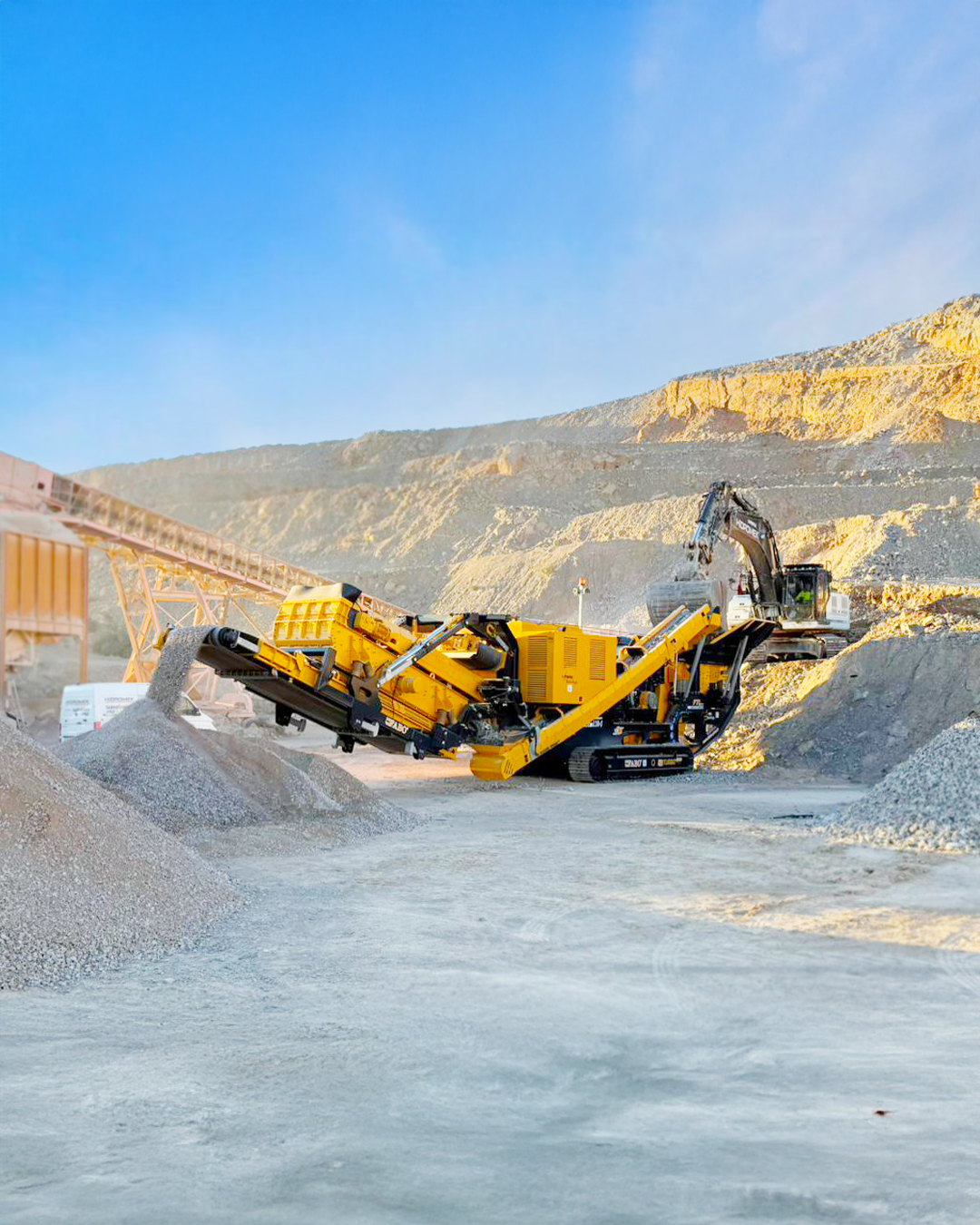

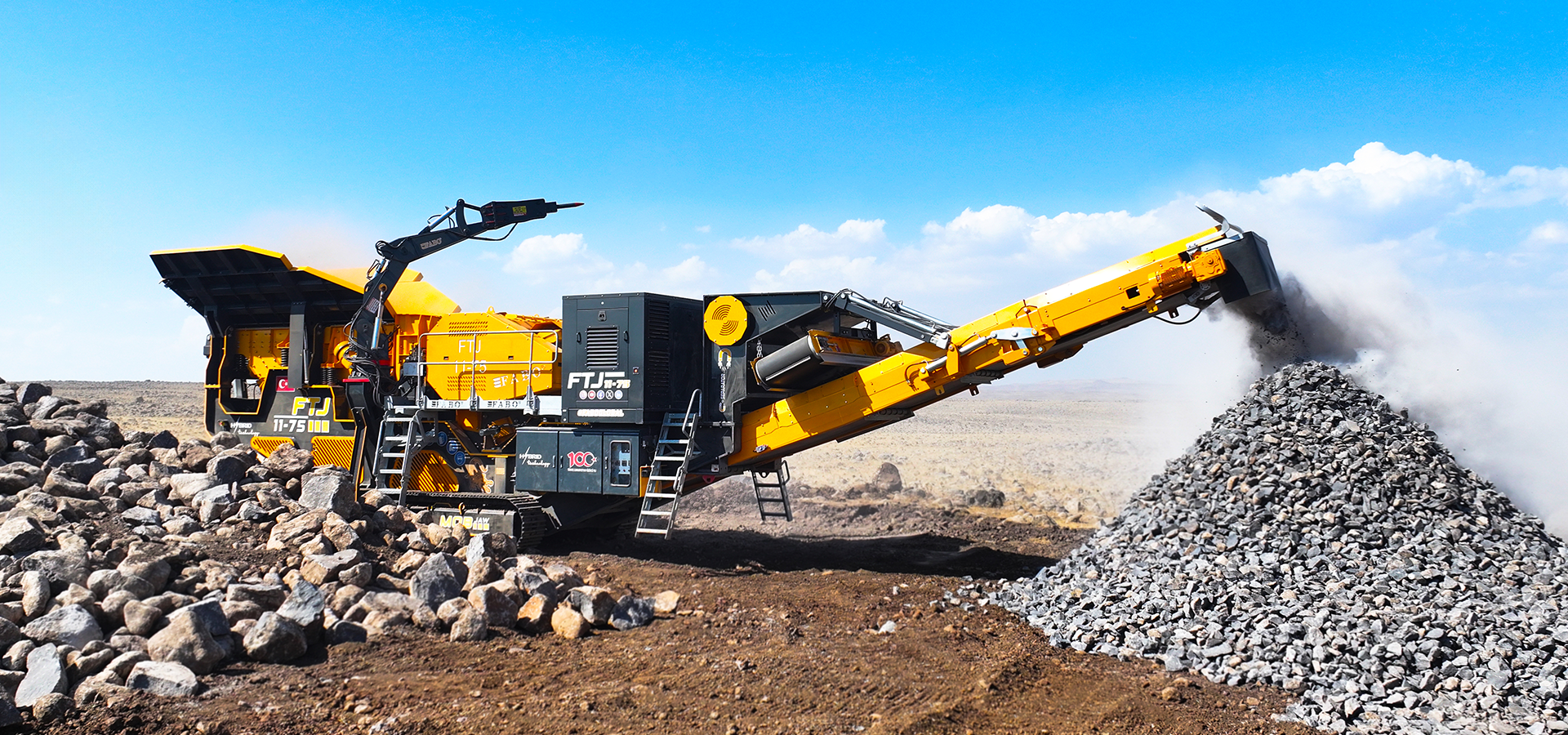

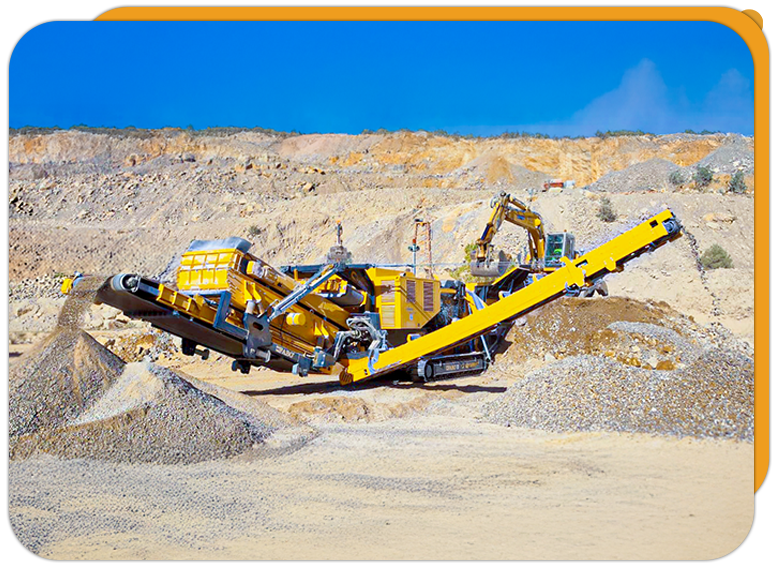

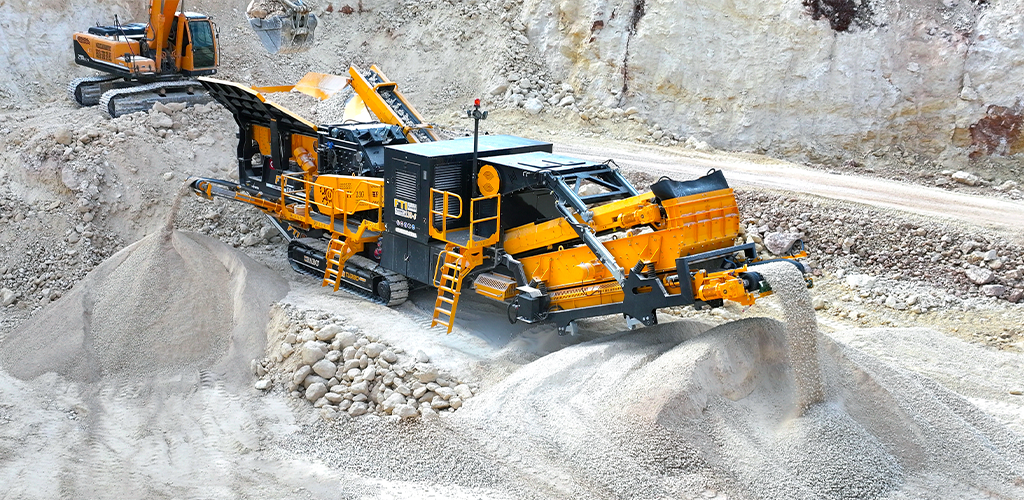

Mobile crushers are used in quarries, concrete, rubble recycling plants, and aggregate production facilities. They are used to crush and classify high-hardness stones and rubble into different sizes.
The Compact Concrete Batching Plant keeps operating and maintenance costs at a minimum with its minimized structure and user-friendly design. The concrete batching plant is operated by a single personnel and performs uninterrupted ready-mixed concrete production.
The most important factor for the smooth operation of concrete batching plants is the automation system. Not ignoring this, FABO engineers brought the Compact Concrete Batching Plant automation system to life using PLC technology. The Compact Concrete Batching Plant produces all concrete types in accordance with the concrete recipe.

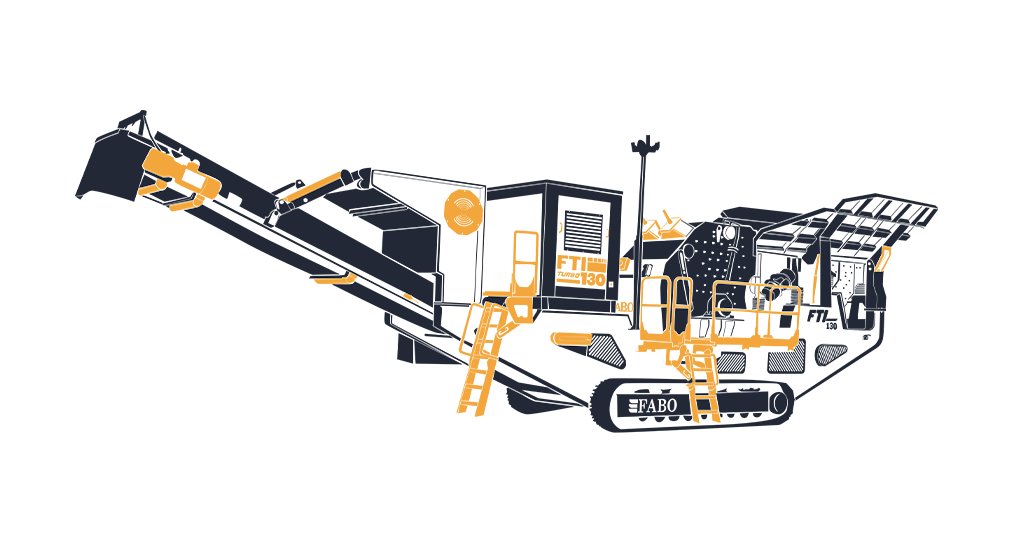

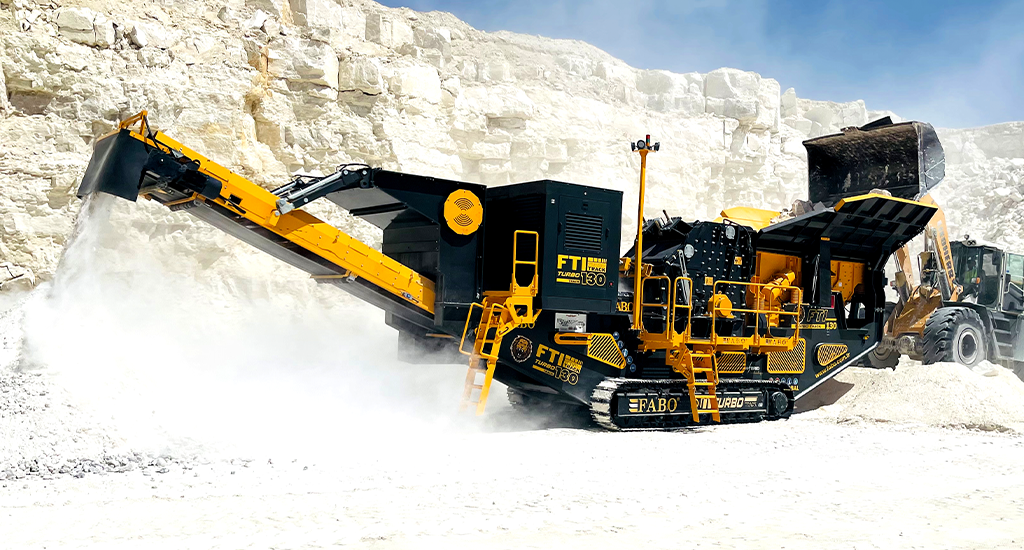

FROM DESIGN TO REALITY

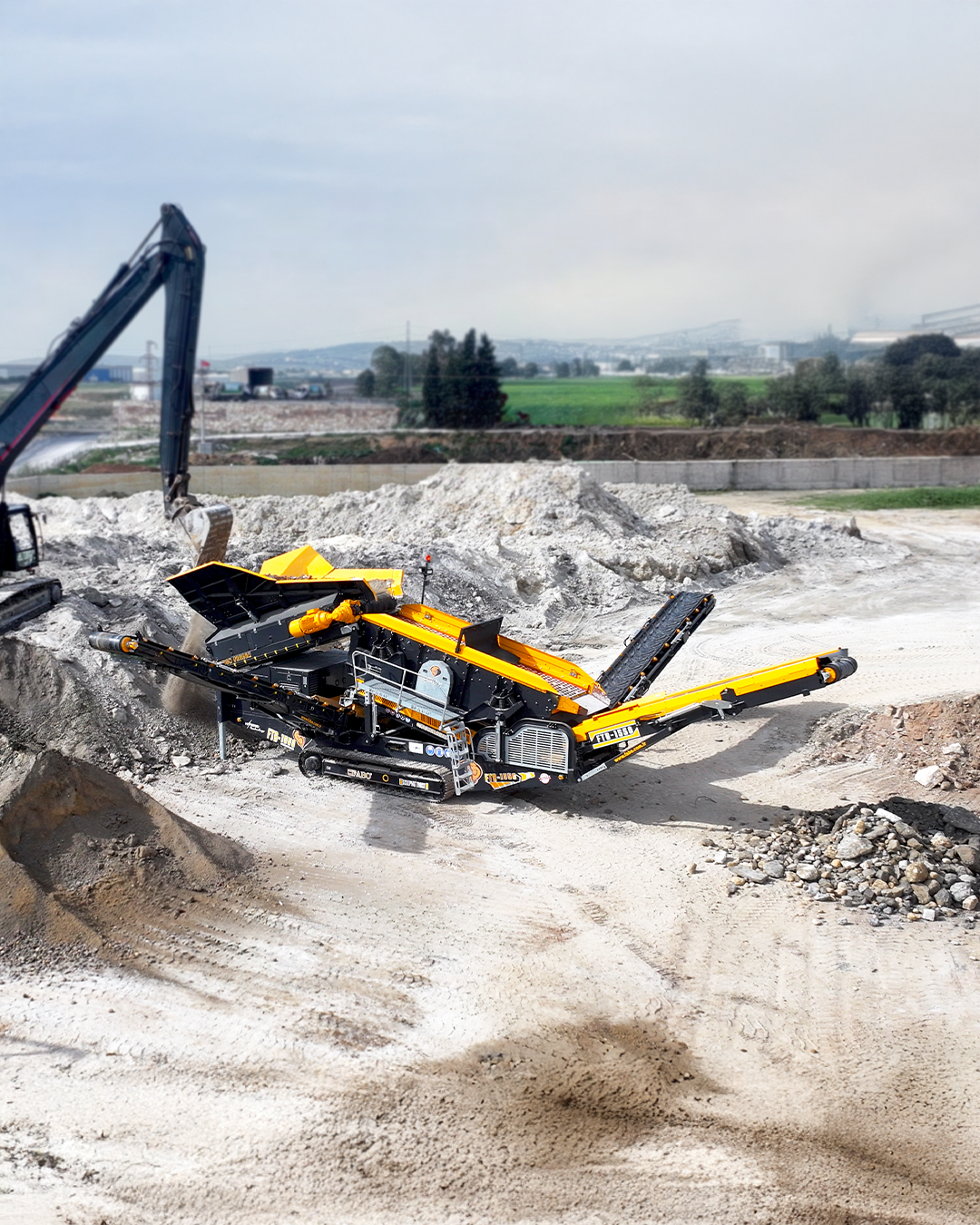

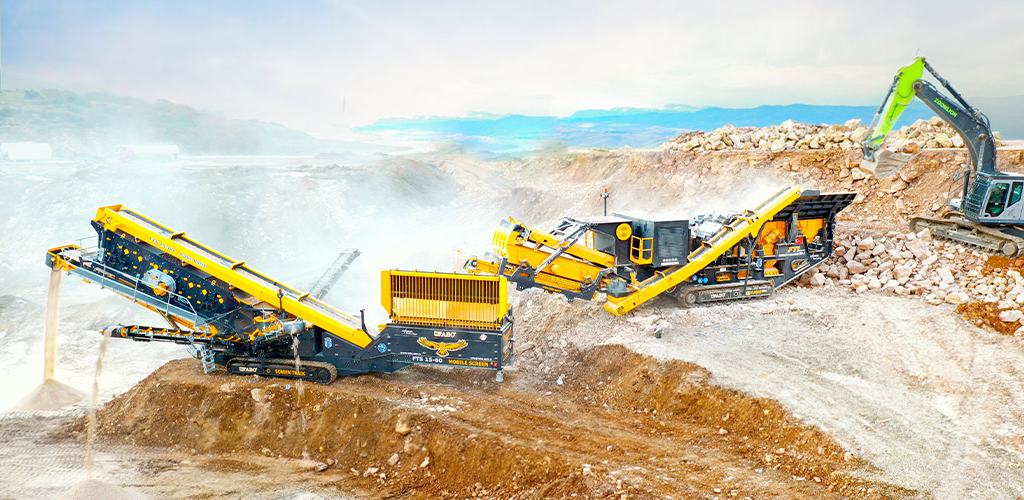

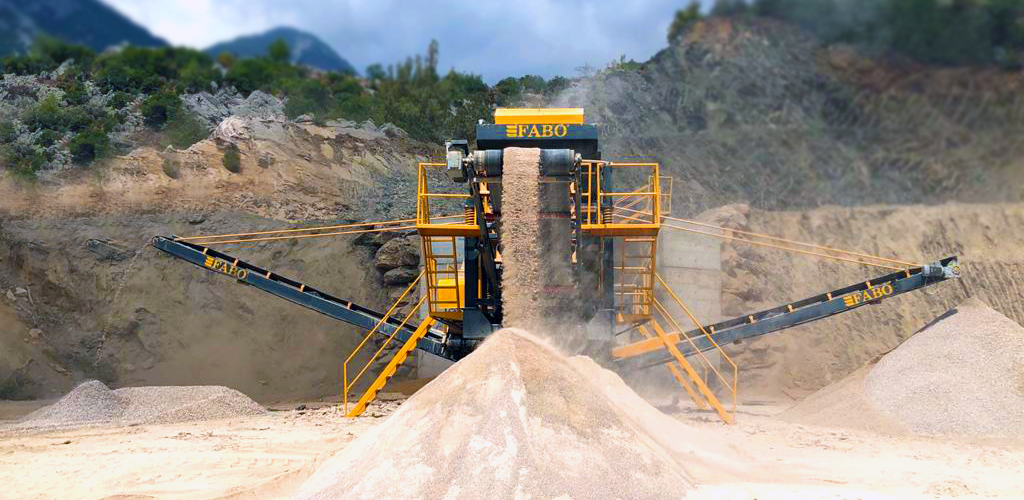

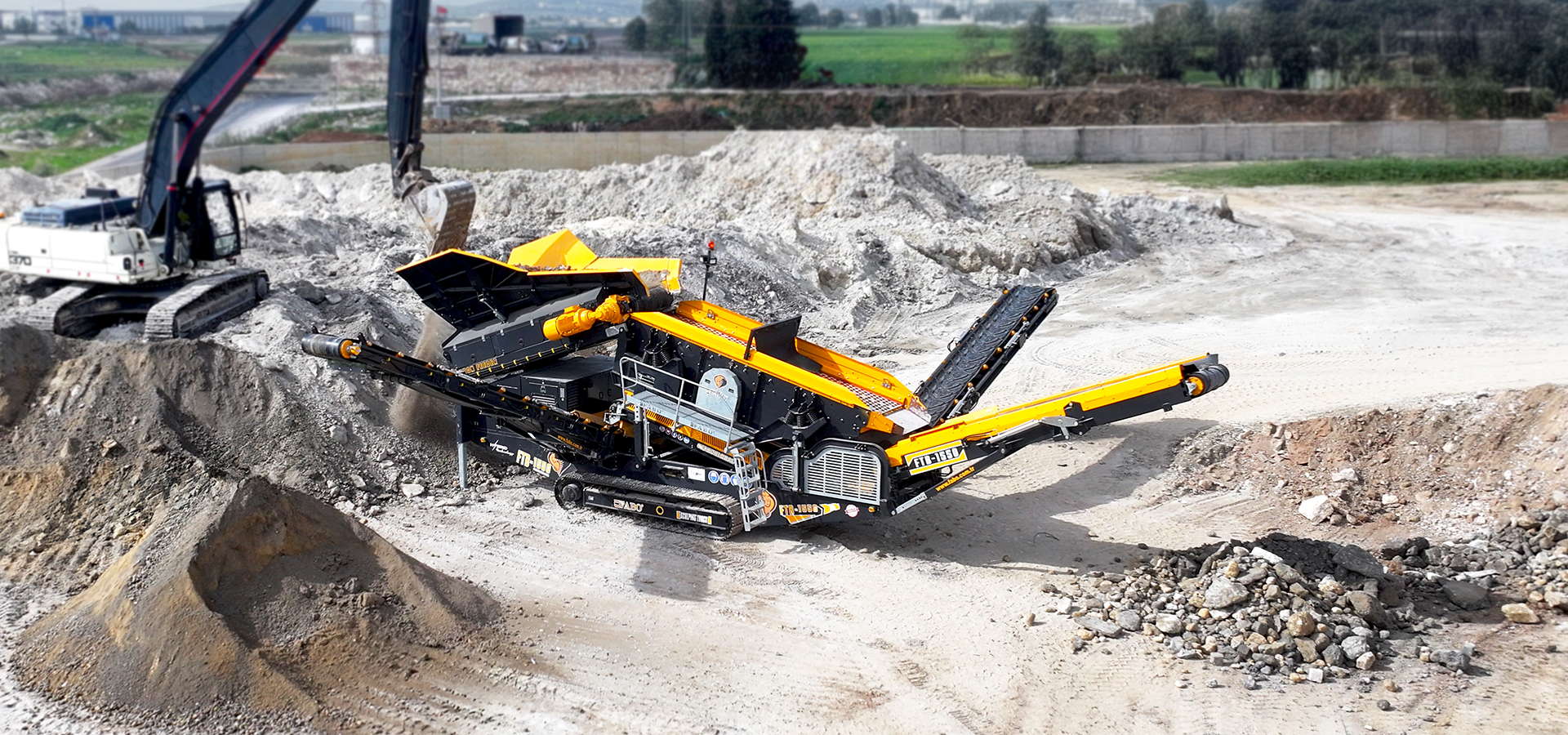

Mobile Screening Plants

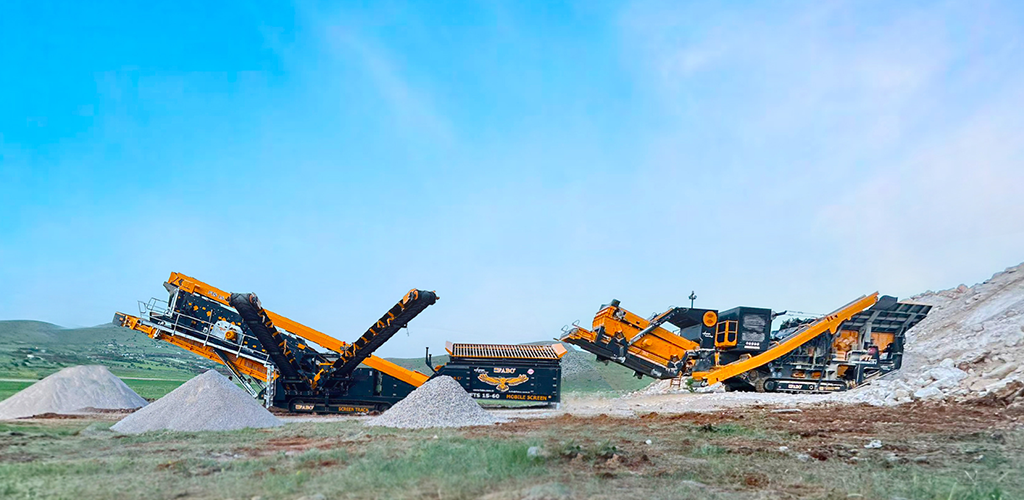

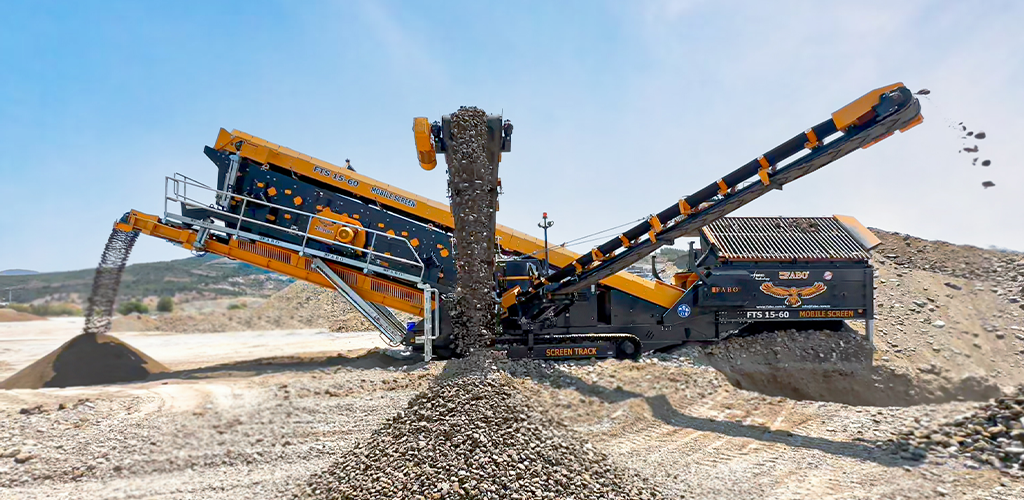

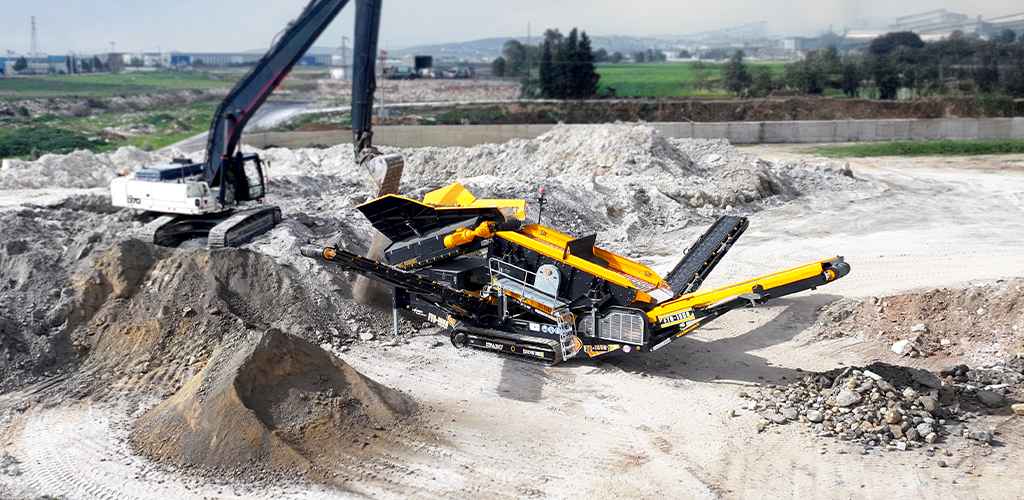

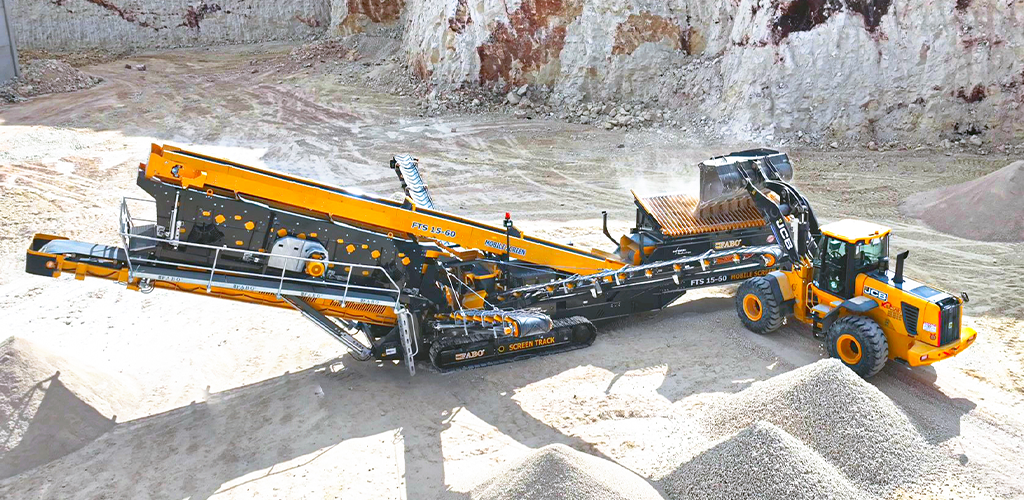

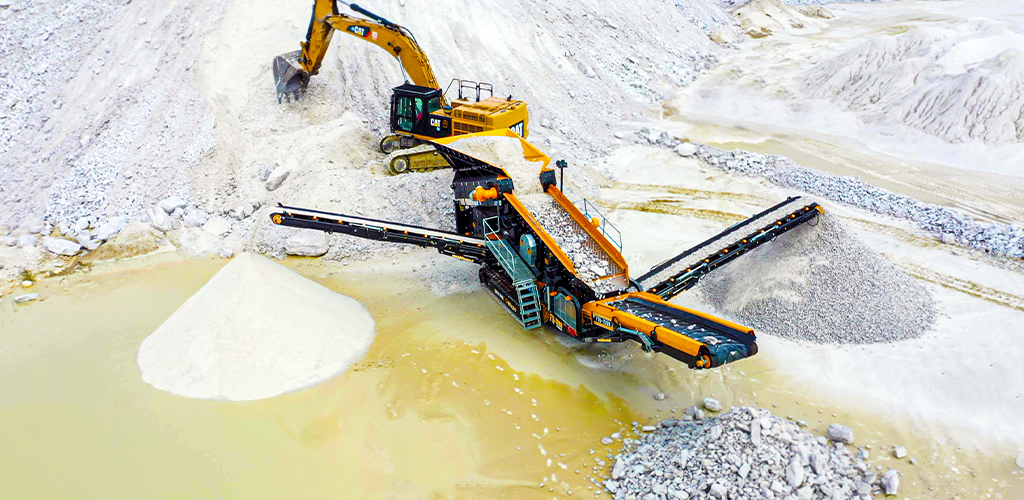

Mobile screening plants are used to classify and stockpile the products crushed in crushing plants into different sizes. Stockpiled products are generally used in road construction projects, as filling material in construction areas, and in aggregate production. Mobile screening plants stand out with their high production capacity. Thanks to the high production capacity, labor and energy consumption are kept at a minimum level.
The mobile screening plant gets its screening power from the vibrating screen. The vibrating screen is used to separate products of different sizes.

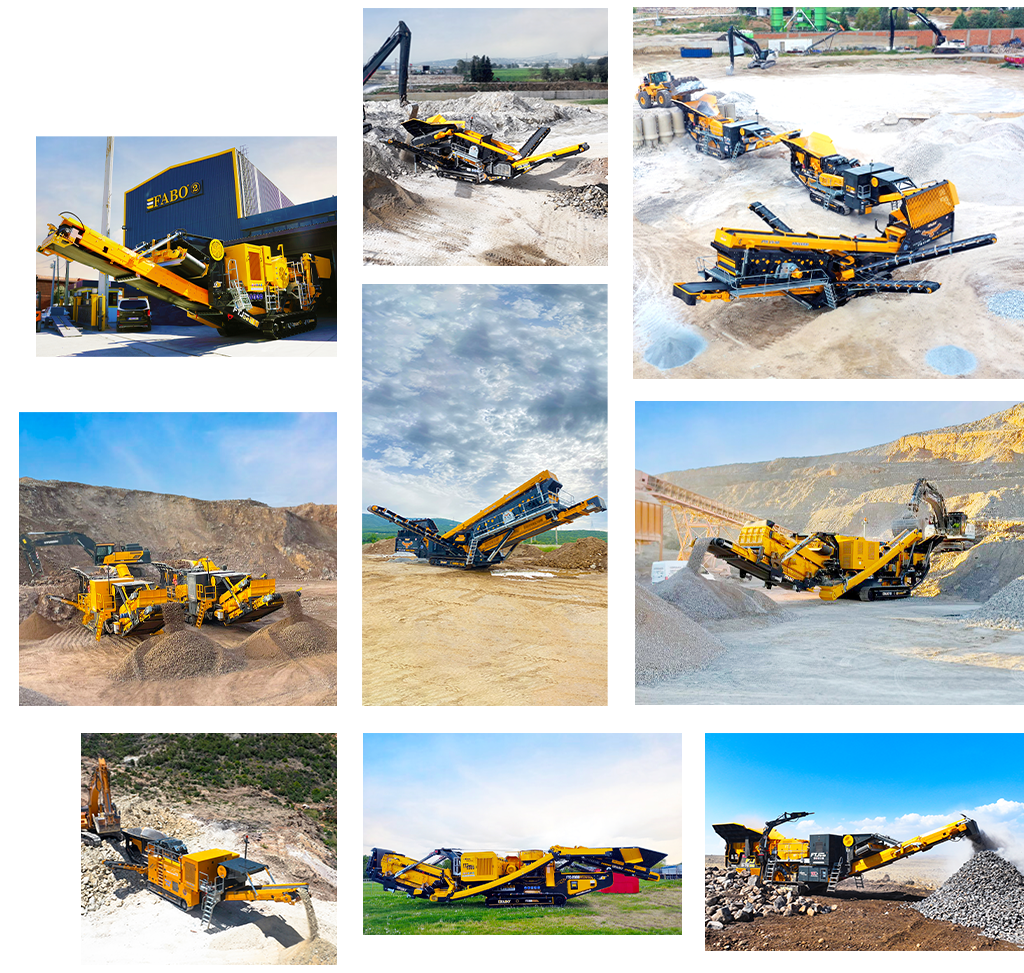

Our Mobile Solutions
Technical Specifications
Model
FTJ 11-60
Production Capacity
150-300 Tons/Hour
Discharge Opening
40-150 mm
Maximum Feed
600 mm
Power
220 kVA
Model
FTJ 11-75
Production Capacity
150-450 Tons/Hour
Discharge Opening
45-160 mm
Maximum Feed
760 mm
Power
220-300 kVA
Model
FTJ 14-80
Production Capacity
400-700 Tons/Hour
Discharge Opening
75-225 mm
Maximum Feed
800 mm
Power
330-360 kVA
Technical Specifications
Model
Production Capacity
Opening Size
Maximum Feed
Power
FTI-80
70-150 Tons/Hour
Ø 650×860 mm
300 mm
215 kVA
FTI-110
200-240 Tons/Hour
Ø 1000×1000 mm
500 mm
360 kVA
FTI-110-s
200-240 Tons/Hour
Ø 1000×1000 mm
500 mm
360 kVA
FTI-130
400-450 Tons/Hour
Ø 1270×1200 mm
500 mm
550 kVA
FTI-130-s
400-450 Tons/Hour
Ø 1270×1200 mm
500 mm
550 kVA
Technical Specifications
Model
Production Capacity
Rotor Diameter
Maximum Feed
Power
FTV-70
70-150 Tons/Hour
Ø 700 mm
35 mm
215 kVA
FTV-70-OR
70-150 Tons/Hour
Ø 700 mm
60 mm
360 kVA
FTV-70-s
70-150 Tons/Hour
Ø 700 mm
35 mm
360 kVA
FTV-90
120-220 Tons/Hour
Ø 900 mm
50 mm
500 kVA
FTV-90-OR
120-220 Tons/Hour
Ø 900 mm
100 mm
500 kVA
Technical Specifications
Model
Crusher Type
Maximum Feed
Power
FTC-200
Cone Crusher
185 mm
300 kVA
FTC-200-s
Cone Crusher
185 mm
300 kVA
FTC-300
Cone Crusher
215 mm
300 kVA
FTC-300-s
Cone Crusher
215 mm
300 kVA
Technical Specifications
Model
Production Capacity
Power
Vibrating Screen Size
Weight
FTS-15-45-2
300 Tons/Hour
110 kVA
1500×4500 mm
30.000 Kg
FTS-15-60-3
500 Tons/Hour
110 kVA
1550×6100 mm
42.000 Kg
Technical Specifications
Model
Production Capacity
Power
Vibrating Screen Size
Weight
FTB-1550
220-400 Tons/Hour
110 kVA
1530×4800 mm
32.000 Kg

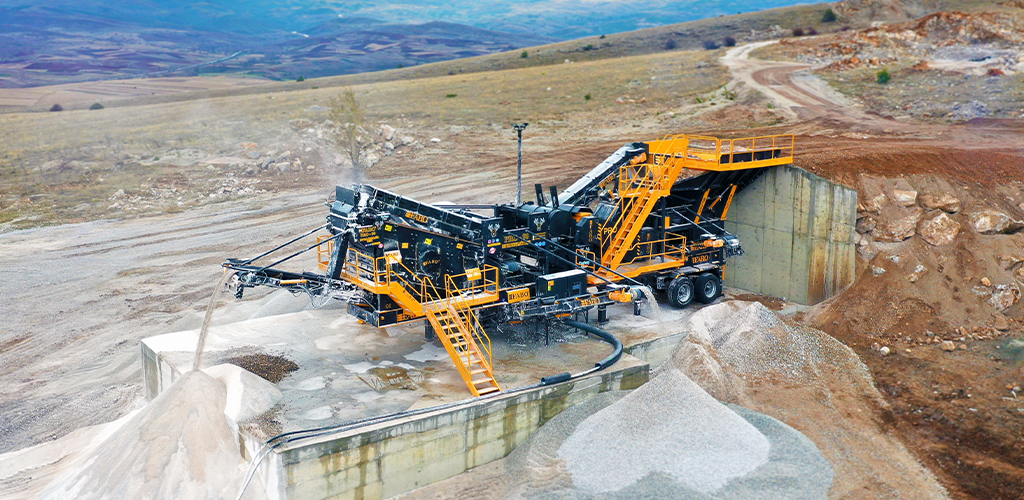

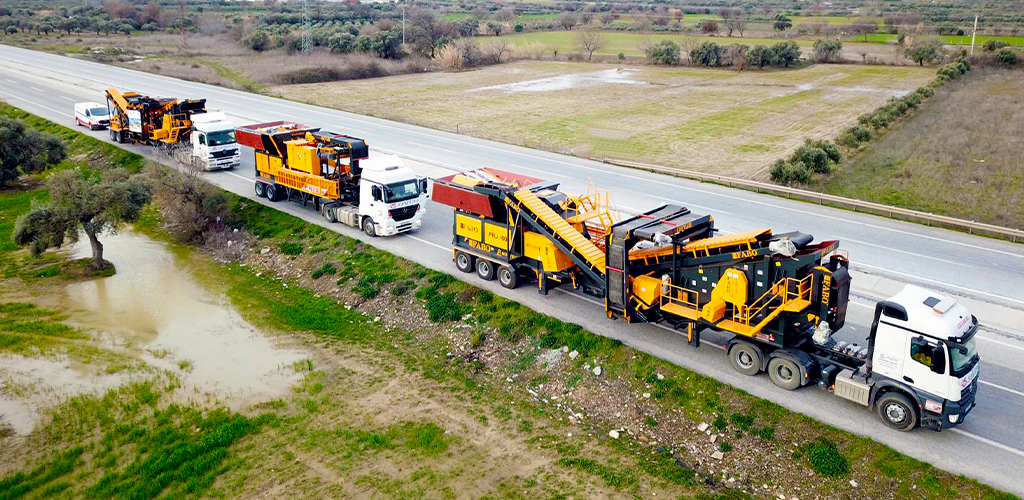

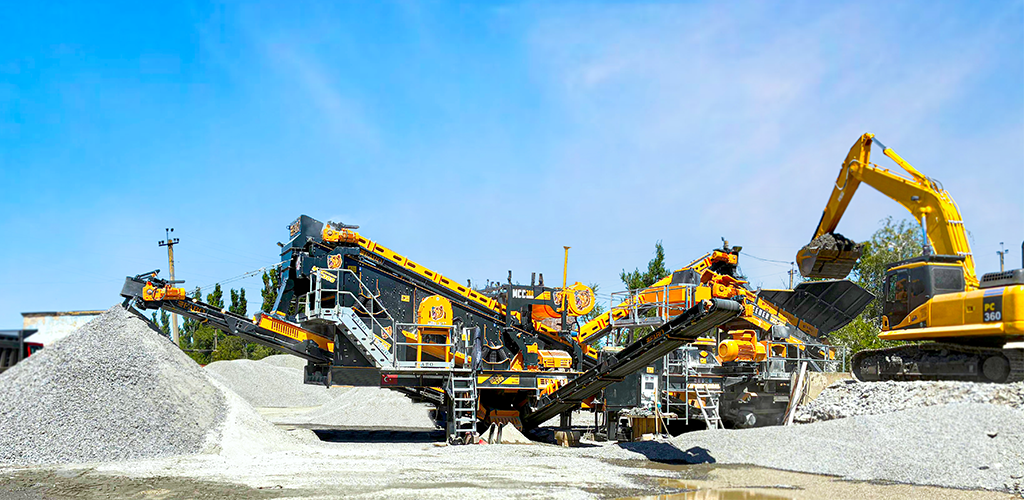

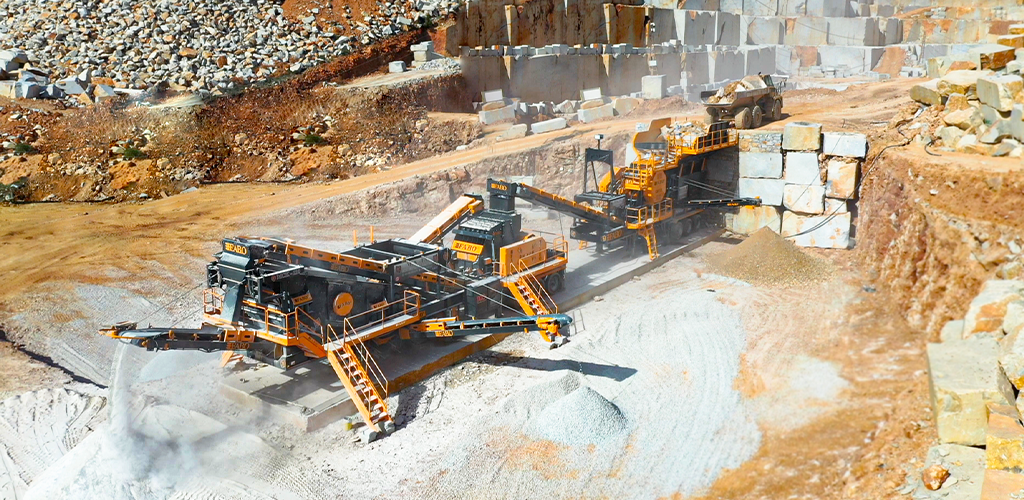

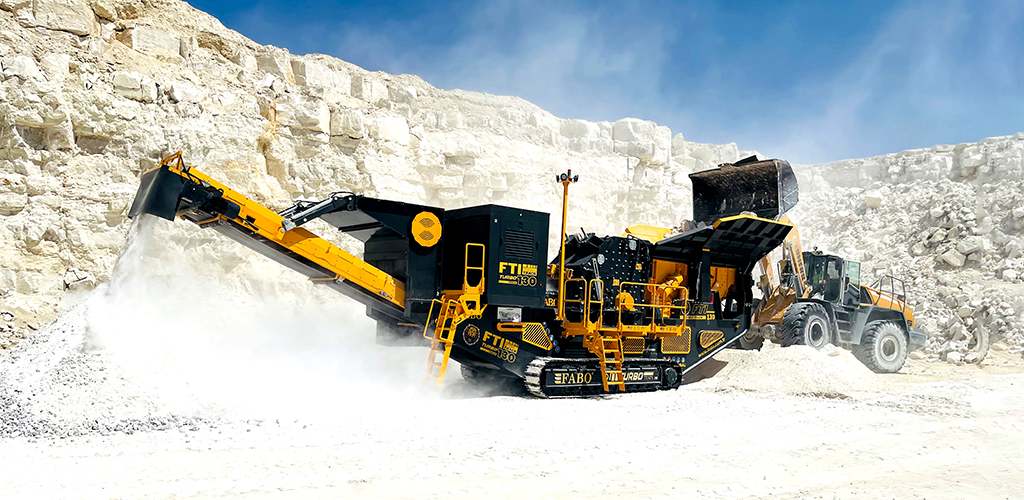

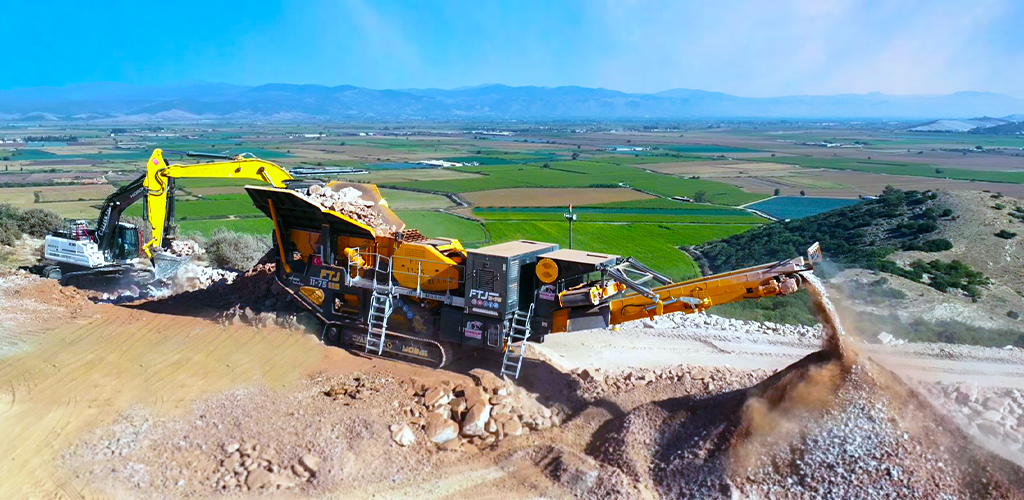

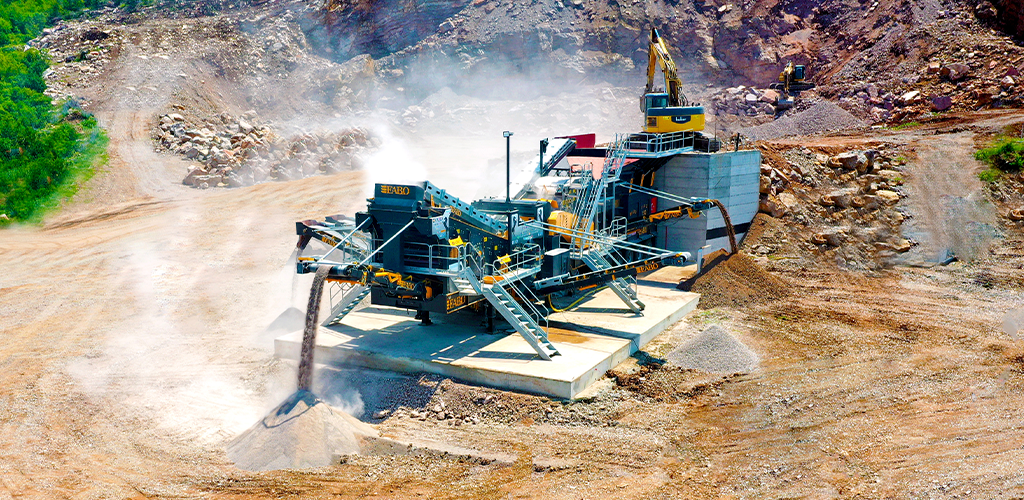

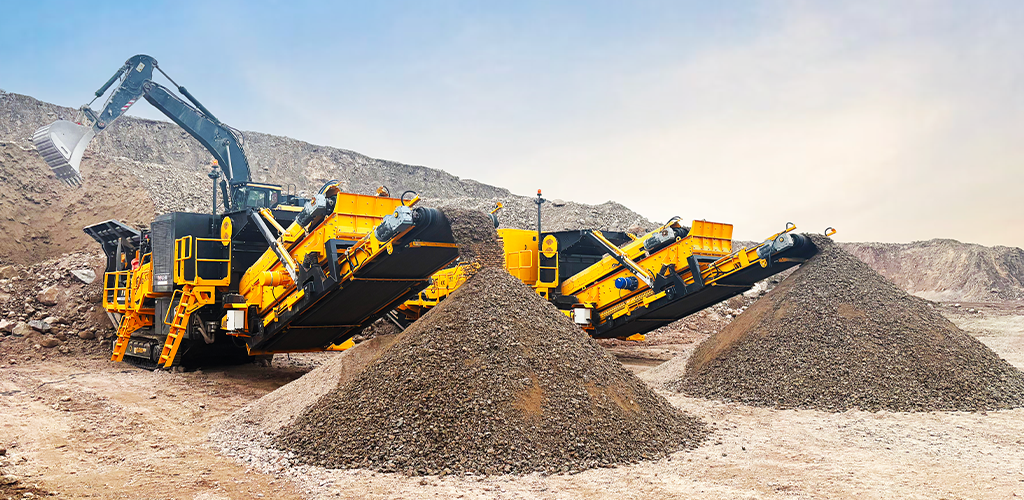

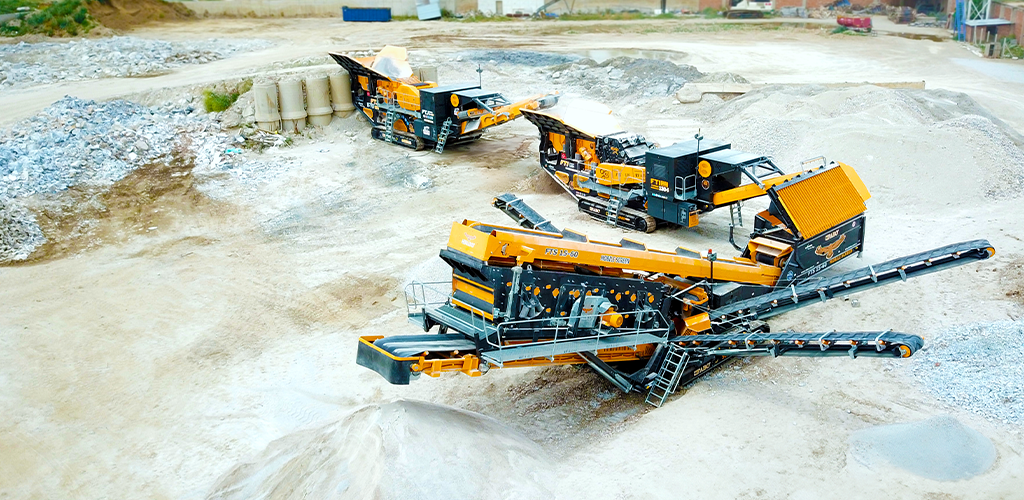

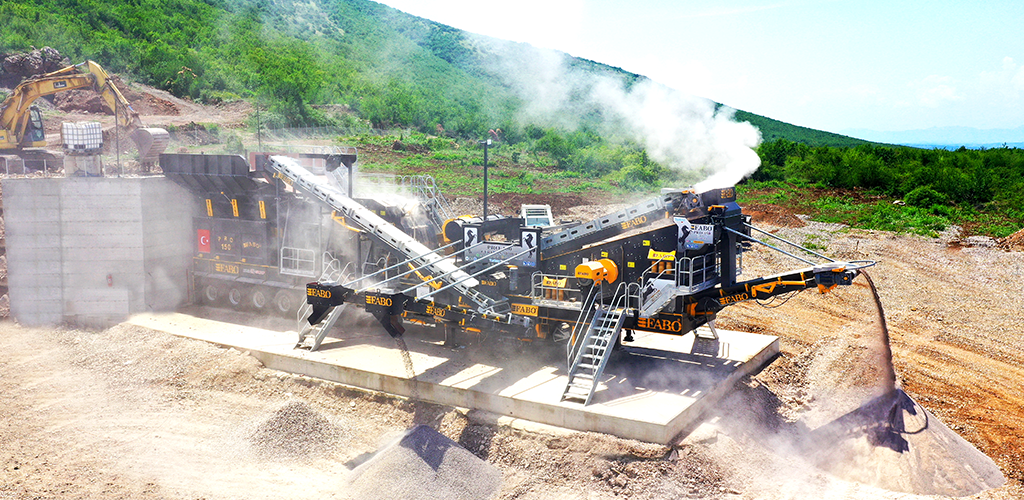

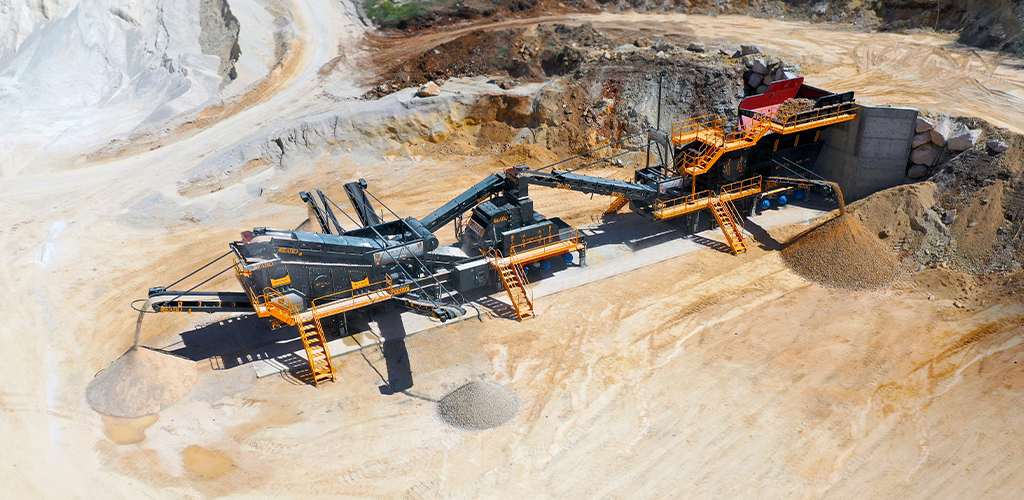

Strong References
IN ALL DEMANDING CONSTRUCTION SITES
ACHIEVE HIGH PERFORMANCE WITH FABO CRUSHING AND SCREENING PLANTS
FABO IS YOUR SOLUTION PARTNER IN ALL CONSTRUCTION SITES.
PORTABLE CRUSHING AND SCREENING PLANTS FOR UNIQUE AND INNOVATIVE SOLUTIONS

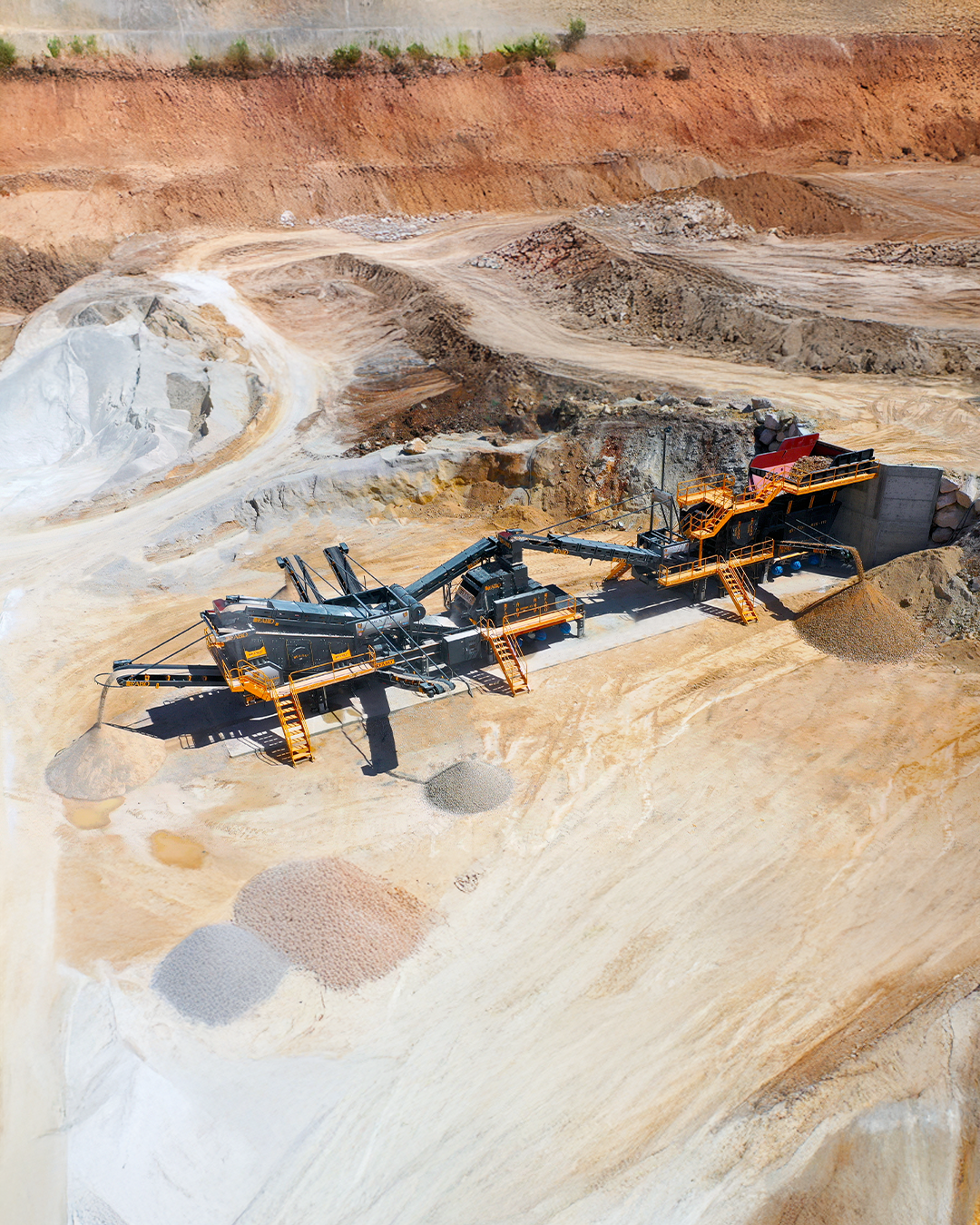

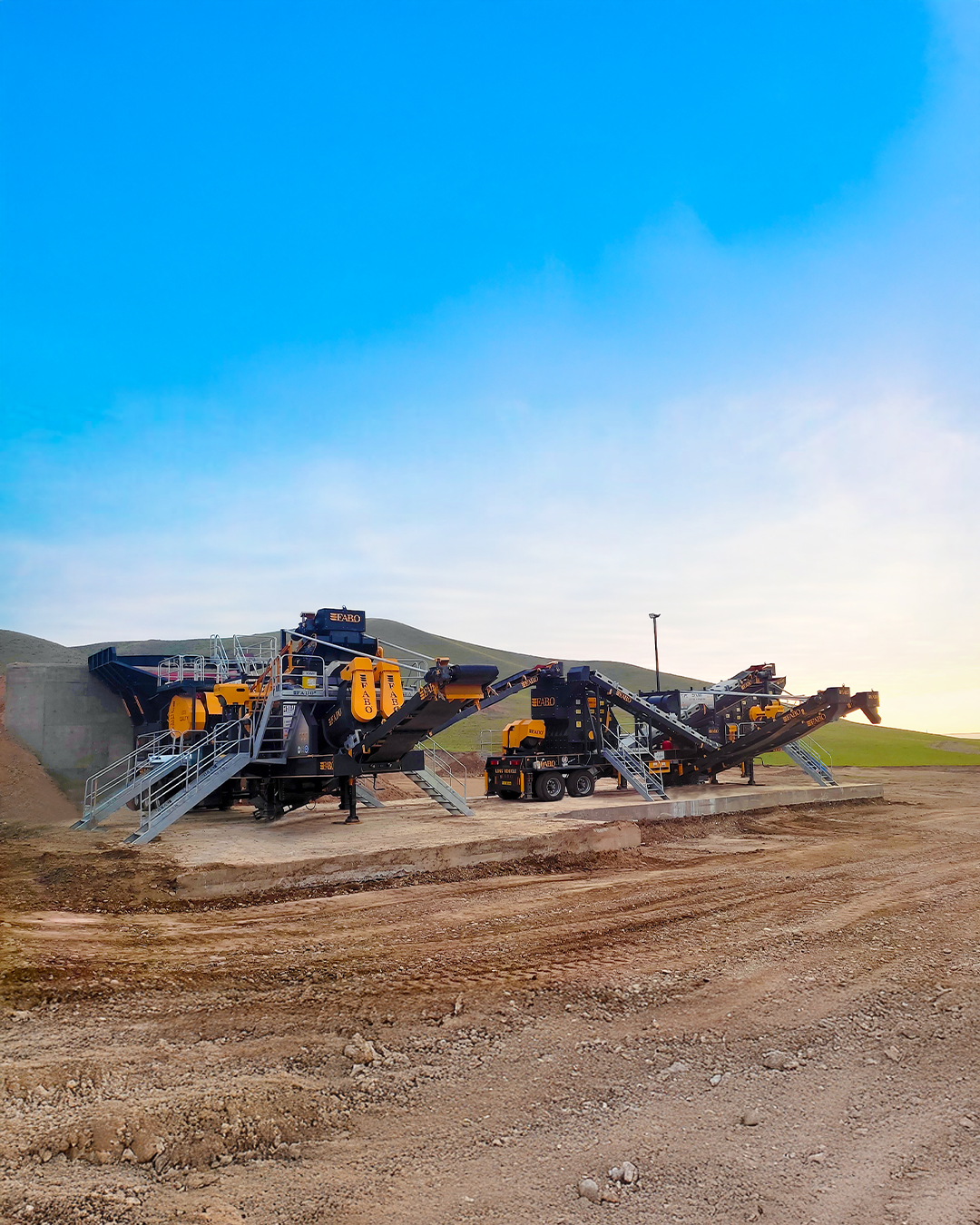

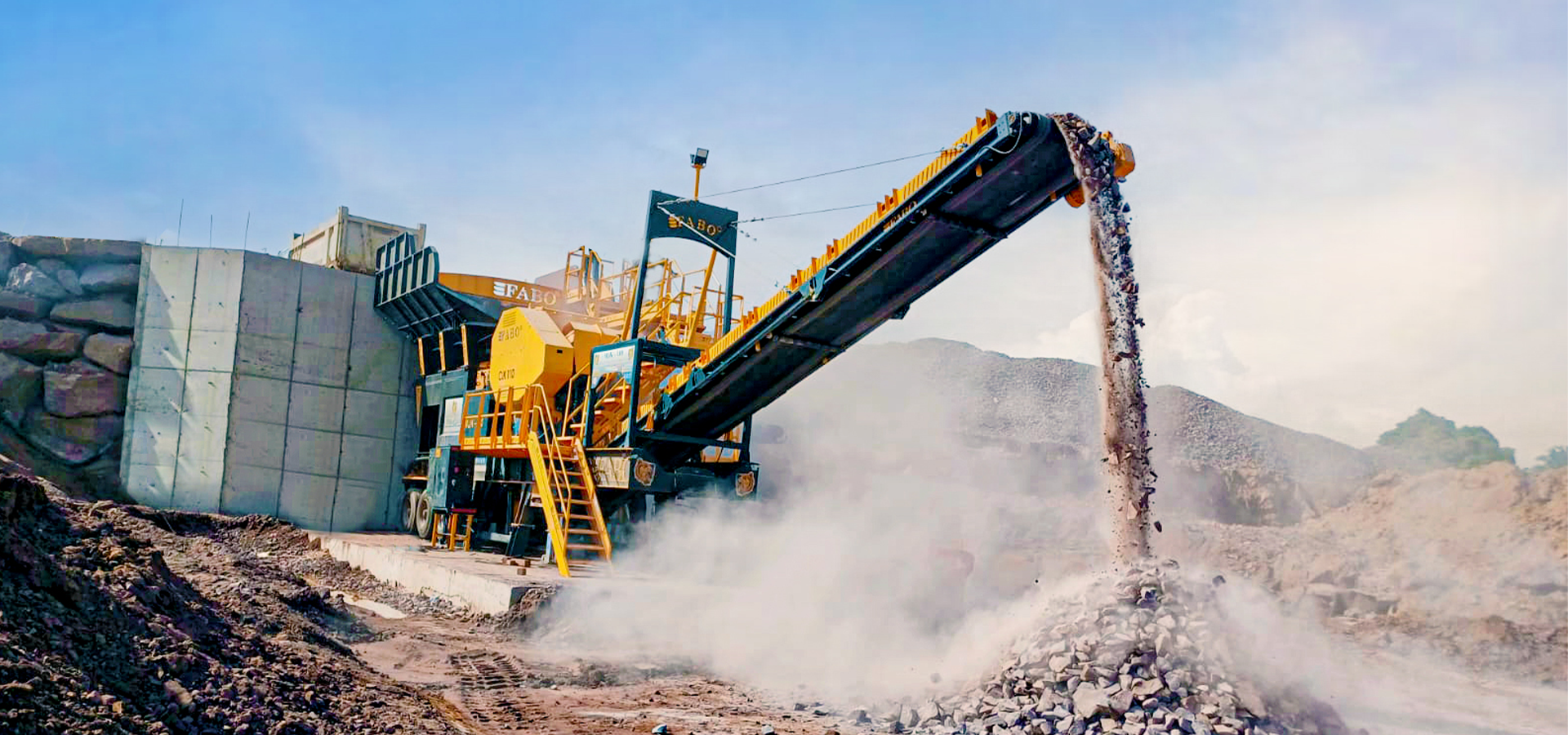

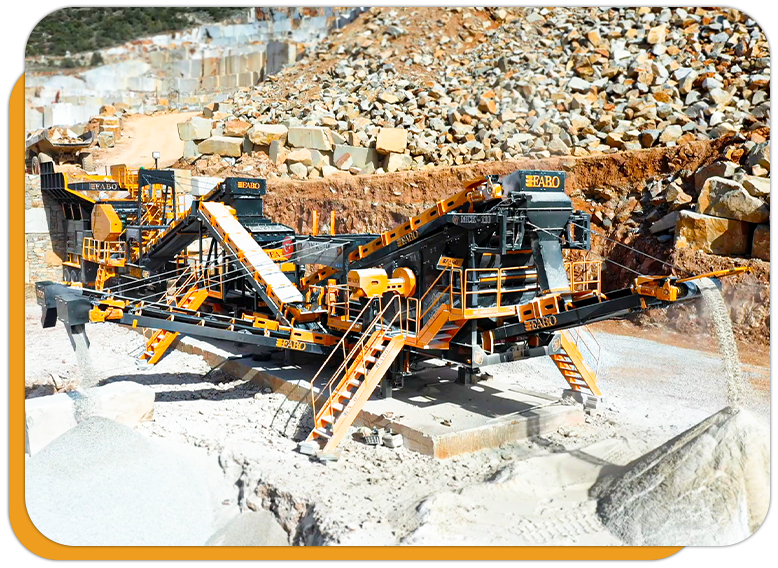

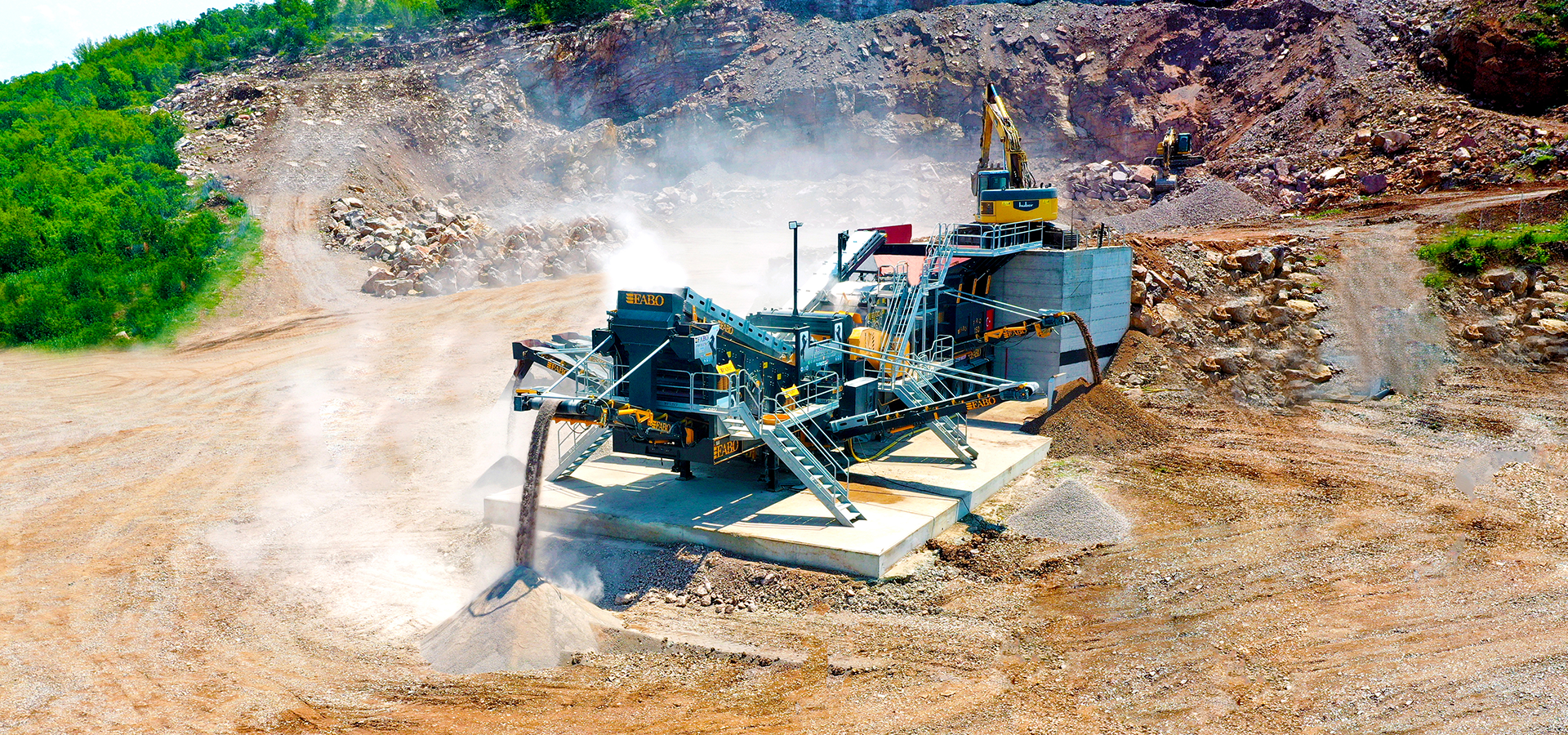

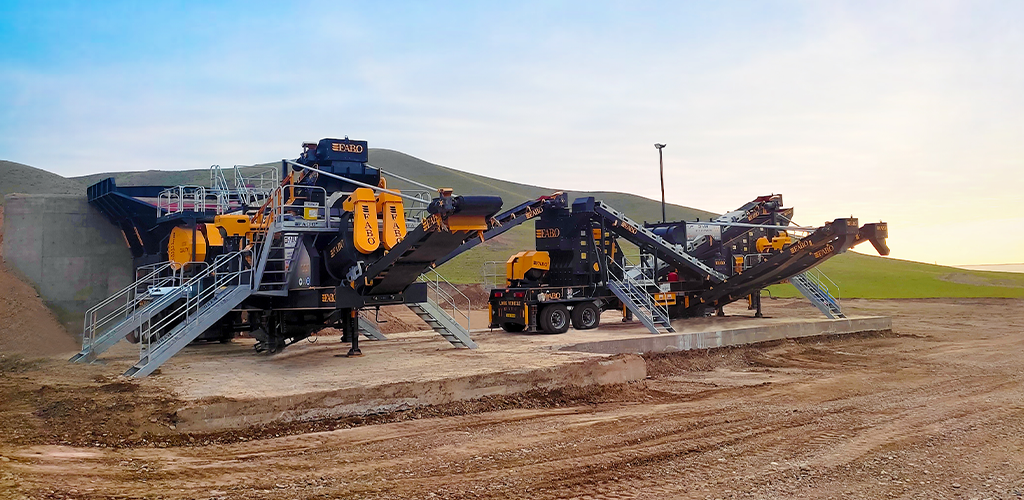

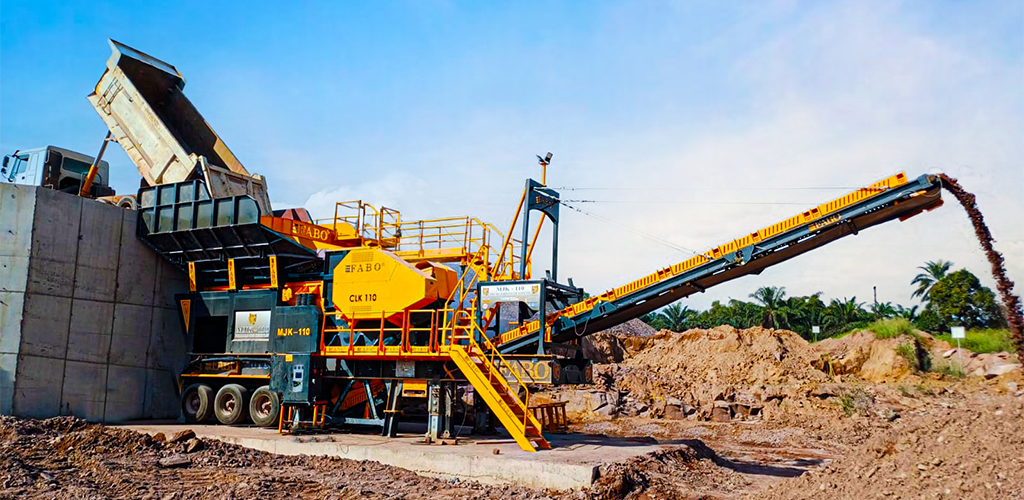

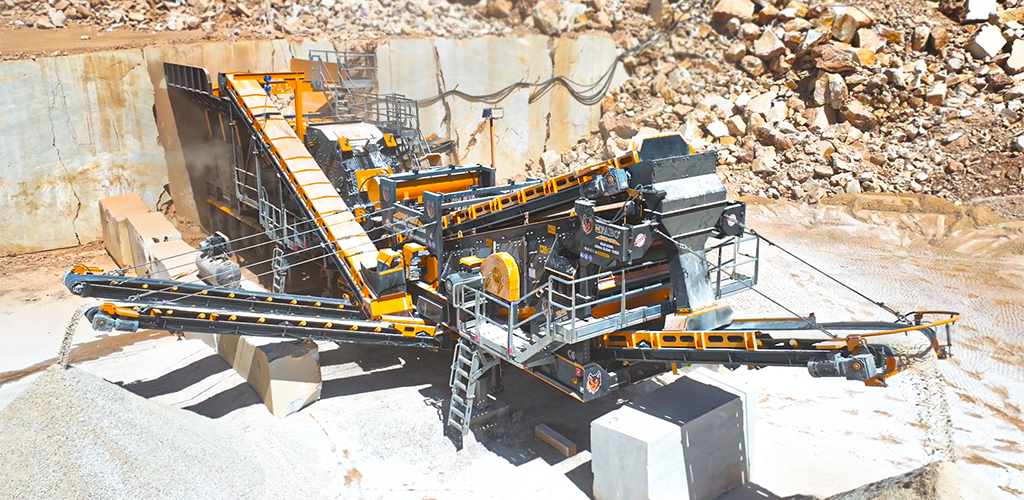

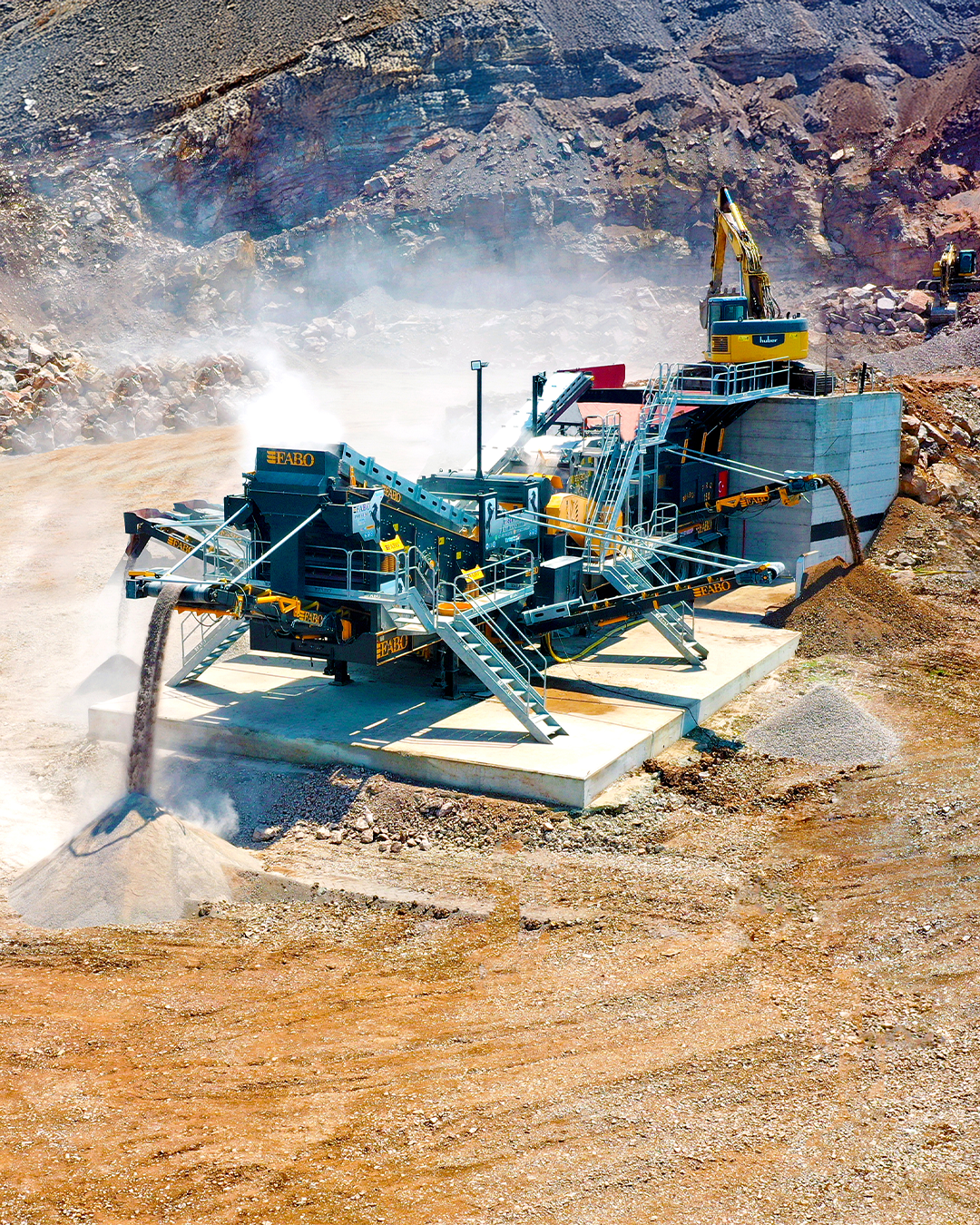

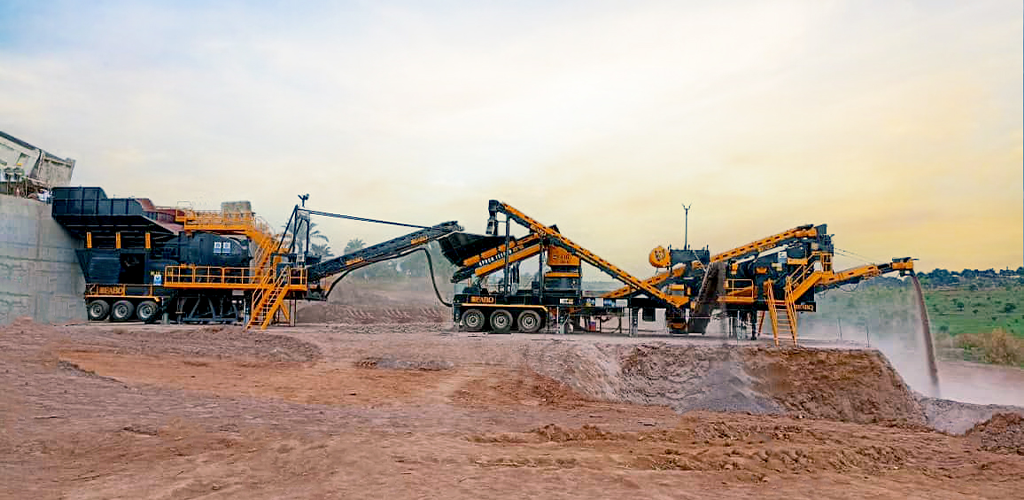

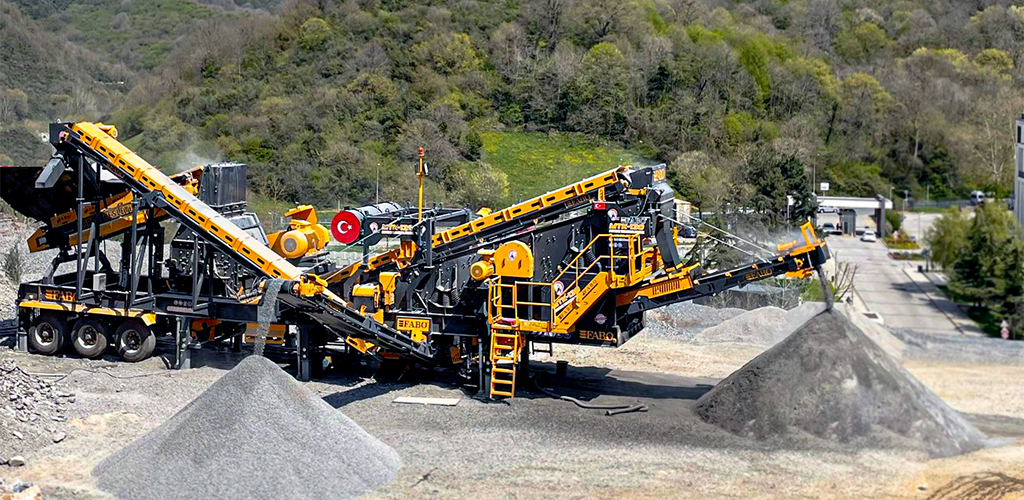

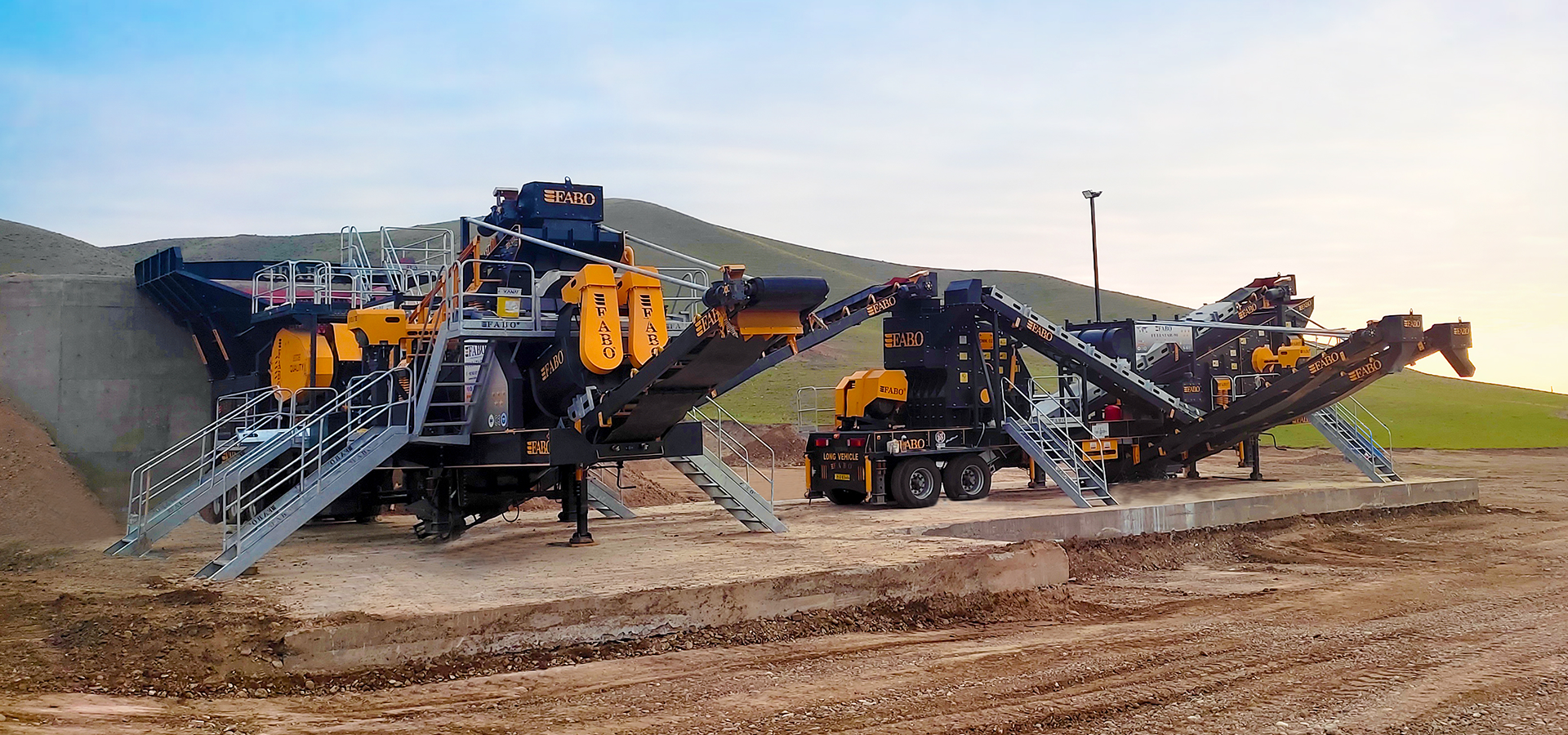

A portable crushing and screening plant can be defined as a mobile facility where crushing and screening processes of materials such as stones and minerals are carried out. Generally used in areas like quarries, construction sites, and road building, these plants allow for on-site production and reduce material transportation costs.

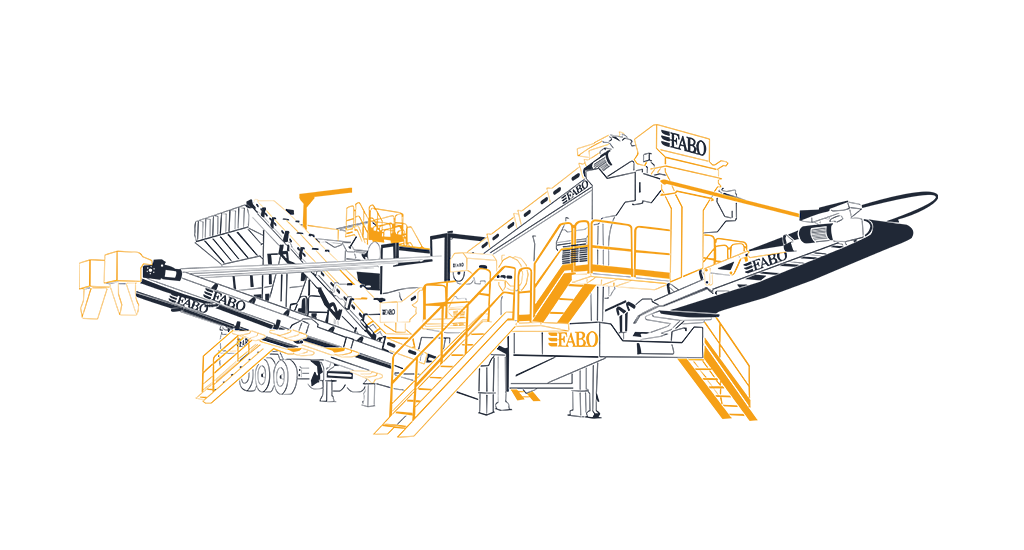

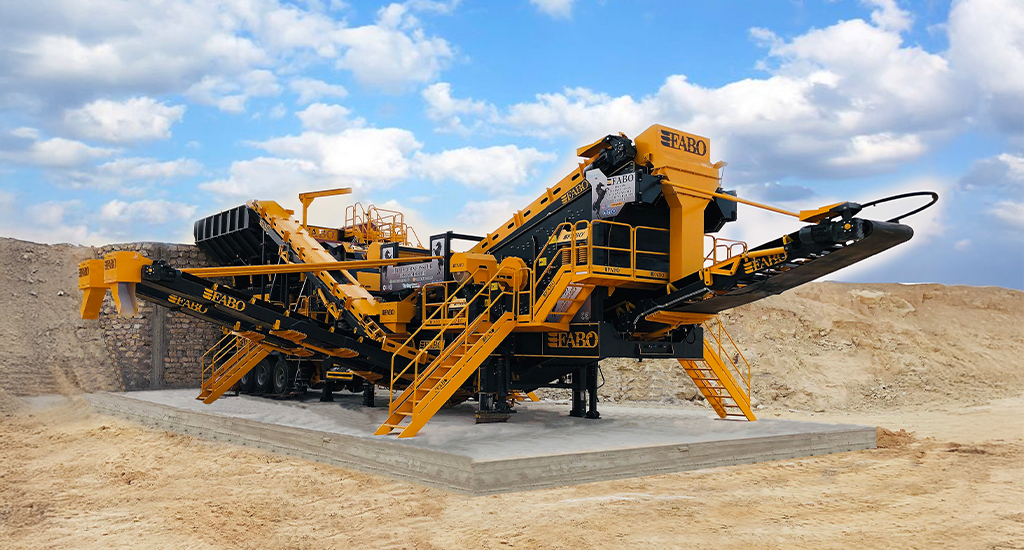

FROM DESIGN TO REALITY
How Does a Portable Crushing and Screening Plant Work?
Portable crushing and screening plants generally consist of components such as a primary crusher, secondary crusher, vibrating screen, feeding conveyor, carrying conveyor, and feeding bunker. The material is first fed to the primary crusher where it is broken into pieces. The material is then transferred to the secondary crusher where it is reduced to smaller sizes. Finally, thanks to the vibrating screen, the material is separated according to the desired sizes and made ready for use.

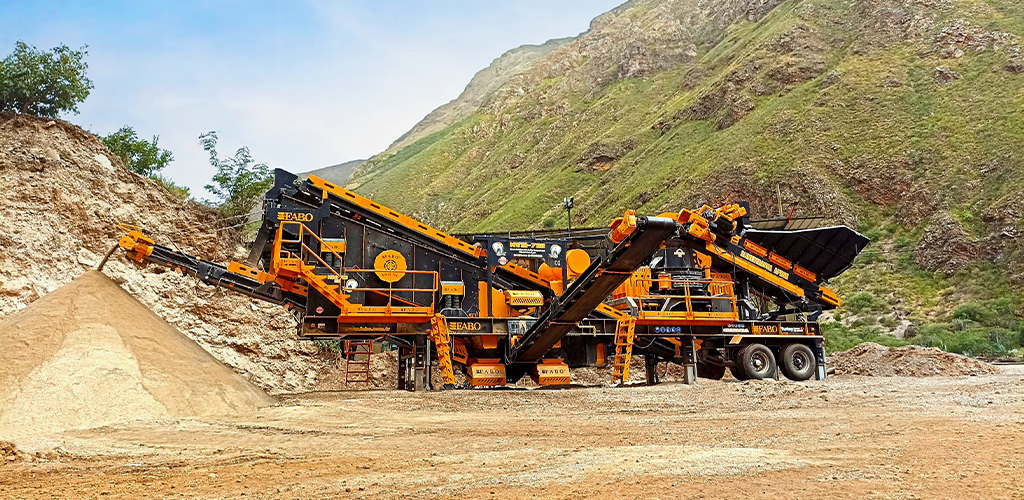

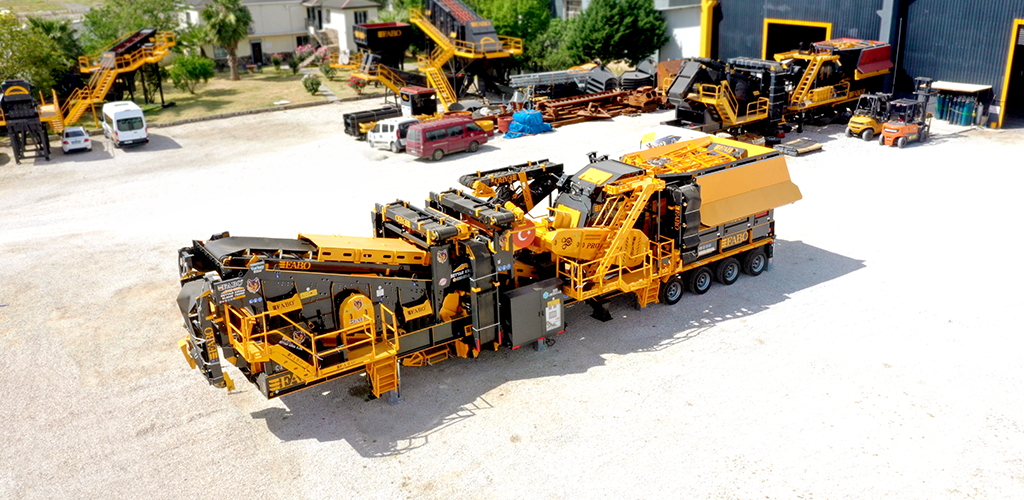

Portable Crushing and Screening Plants
Portable crushing plants are machines that can contain one or more crushers in their structure. Portable crushing plants meet all the crushing and screening plant demands of our customers with their different models. Portable crushing plants can host crushers such as jaw crusher, cone crusher, tertiary crusher, impact crusher, VSI crusher, secondary impact crusher and can accommodate two different crusher types in combination on one or two chassis, especially as in MCK portable hard stone crushing and screening plants. Portable crushing and screening plants exhibit superior performance in all challenging construction sites. All portable crushing plants can be commissioned by a single personnel with full automation system.
Portable Crushing Plant Models
1- PRO Series Portable Crushing and Screening Plant
2- MCK Series Portable Hard Stone Crushing and Screening Plant
3- MTK Series Portable Tertiary Crusher
4- MVSI Series Portable VSI Crusher
5- MJC Series Portable Jaw Crushing and Screening Plant
6- MCC Series Portable Cone Crusher
7- MDMK Series Portable Secondary Impact Crusher
8- ME Series Portable Screening Plant
Portable Crushing, Screening and Washing Plants
Portable crushing, screening and washing plants are facilities that can contain one or more crushers on a chassis, perfectly wash the products crushed in the crushers thanks to their vibrating washing screen and screw washer, and provide a clean final product at the end of all these processes. Portable crushing, screening and washing plants are produced in different models with one or two different chassis. Thanks to this feature, the chassis can be used individually according to need.
Portable screening and washing plants are produced to classify the products crushed in crushing and screening plants into different sizes and subject them to a washing process. 4 different sizes of final products can be obtained at the same time. In portable screening and washing plants, the washing process is carried out in a vibrating washing screen and a screw washer.
Portable Crushing, Screening and Washing Plants
Portable crushing, screening and washing plants are facilities that can contain one or more crushers on the chassis, perfectly wash the products crushed in the crushers thanks to the vibrating washing screen and screw washer they possess, and provide a clean final product at the end of all these processes. Portable crushing, screening and washing plants are produced in different models with one or two different chassis. Thanks to this feature, the chassis can be used individually as needed.
Portable screening and washing plants are produced to classify the products crushed in crushing and screening plants into different sizes and subject them to a washing process. 4 different sizes of final products can be obtained at the same time. In portable screening and washing plants, the washing process is carried out in a vibrating washing screen and a screw washer.
